Uniflex SH4 (S3L) – Technical Data
| SH 4 Mobileline | |
|---|---|
| Crimp force (kN/Ton) | 1,800/180 |
| No grease 20% less friction | ✓ |
| Control | Control A |
| SAE R 12/4SP* 1 piece fitting | 2″ |
| SAE R 15/4SH* 2 piece fitting | 1 1/4″ |
| SAE R 12/4SP* 2 piece fitting | 2″ |
| Industrial | 2″ |
| 90° Elbows | 1 1/4″ |
| Max. Crimp range (mm/inch) | 70 / 2.76 |
| Opening (mm/inch) | +27 / +1.06 |
| Opening without dies (mm/inch) | 97 / 3.82 |
| Master dies length (mm/inch) | 110 / 4.33 |
| Types of dies | 239-xx-0 |
| Speed (mm/sec) Close Crimp Open | 0.7 0.7 3.0 |
| Noise level | 69 dBA |
| Drive | 1.8 kW 1 VAC |
| Oil | 4 l |
| L x W x H (mm) | 430 x 370 x 440 |
| Weight | 110 kg (without power unit |
| Options | |
| 12 VDC/24 VDC | ✓ |
| 1 VAC | ✓ |
| Control C.2/IPC | – |

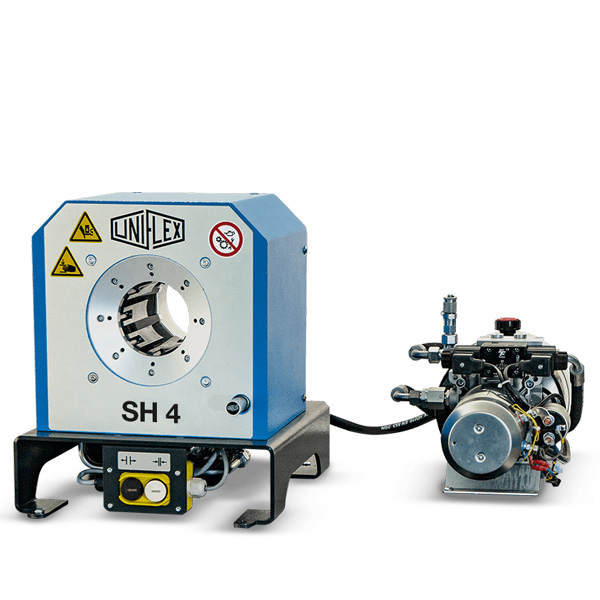

The Uniflex SH4 has a slim and innovative design, high user-friendliness, versatility, and long service life, the S3 series sets the standard for quality and economy in the hose press class.
Using the long base dies allows the crimping of 90° fittings up to 1 ¼”.
Large opening travel
- Easy pressing of elbow fittings without removing the pressing dies
Compact design
- Finds place in any workshop
ECOLINE version
- Entry level model with the same quality
