Description

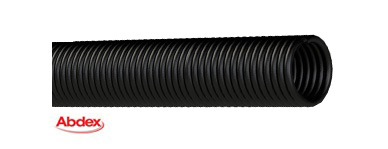

Truck Vacuum Hose – Product specifications
 |  inch | mm |  inch | mm |  bar | psi |  mm |  kg/m | Vacuum in/hg | Length m |
|---|---|---|---|---|---|---|---|
| TV-038 | 1 1/2 | 38.1 | 1.91 | 48.51 | 3.1 | 45 | 50.8 | 0.56 | 29.8 | 30.48 |
| TV-052 | 2 | 50.8 | 2.45 | 62.23 | 2.8 | 40 | 63.5 | 0.75 | 29.8 | 30.48 |
| TV-076 | 3 | 76.2 | 3.51 | 89.15 | 2.4 | 35 | 76.2 | 1.9 | 29.8 | 30.48 |
| TV-102 | 4 | 101.6 | 4.63 | 117.6 | 2 | 30 | 114.3 | 2.62 | 29.8 | 30.48 |
| TV-127 | 5 | 127 | 5.63 | 143 | 2 | 30 | 127 | 4.26 | 28 | 30.48 |
| TV-152 | 6 | 152.4 | 6.81 | 172.97 | 2 | 30 | 233.7 | 4.69 | 28 | 20 / 30.48 |
Applications
Heavy-duty abrasion resistant suction hose for vacuum trucks or handling abrasives, such as crushed rock,
sand, pea gravel, cement powder, dry fertilizer, iron ore, and grains.
Features
• Lightweight and flexible.
• Extremely abrasion resistant.
• Antistatic – Static dissipating with no grounding wire.
Construction
Core tube: SBR rubber blended
Pressure reinforcement: Rigid PVC helix, smooth bore, corrugated O.D.
Cover: SBR (Black Corrugated).
Temperature Range
-40 ̊C to 60 ̊C.
-40 ̊F to 140 ̊F.
