Description

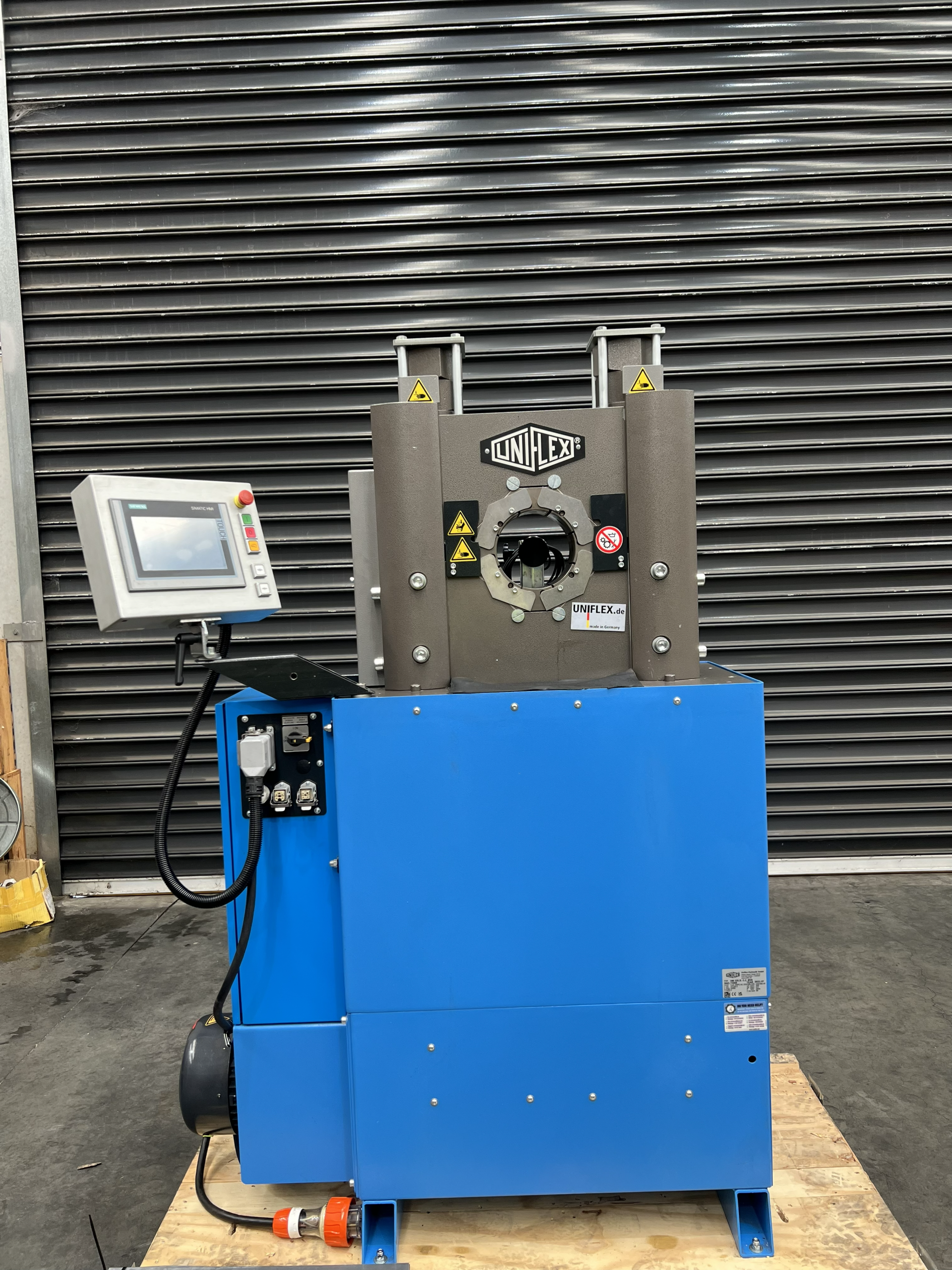

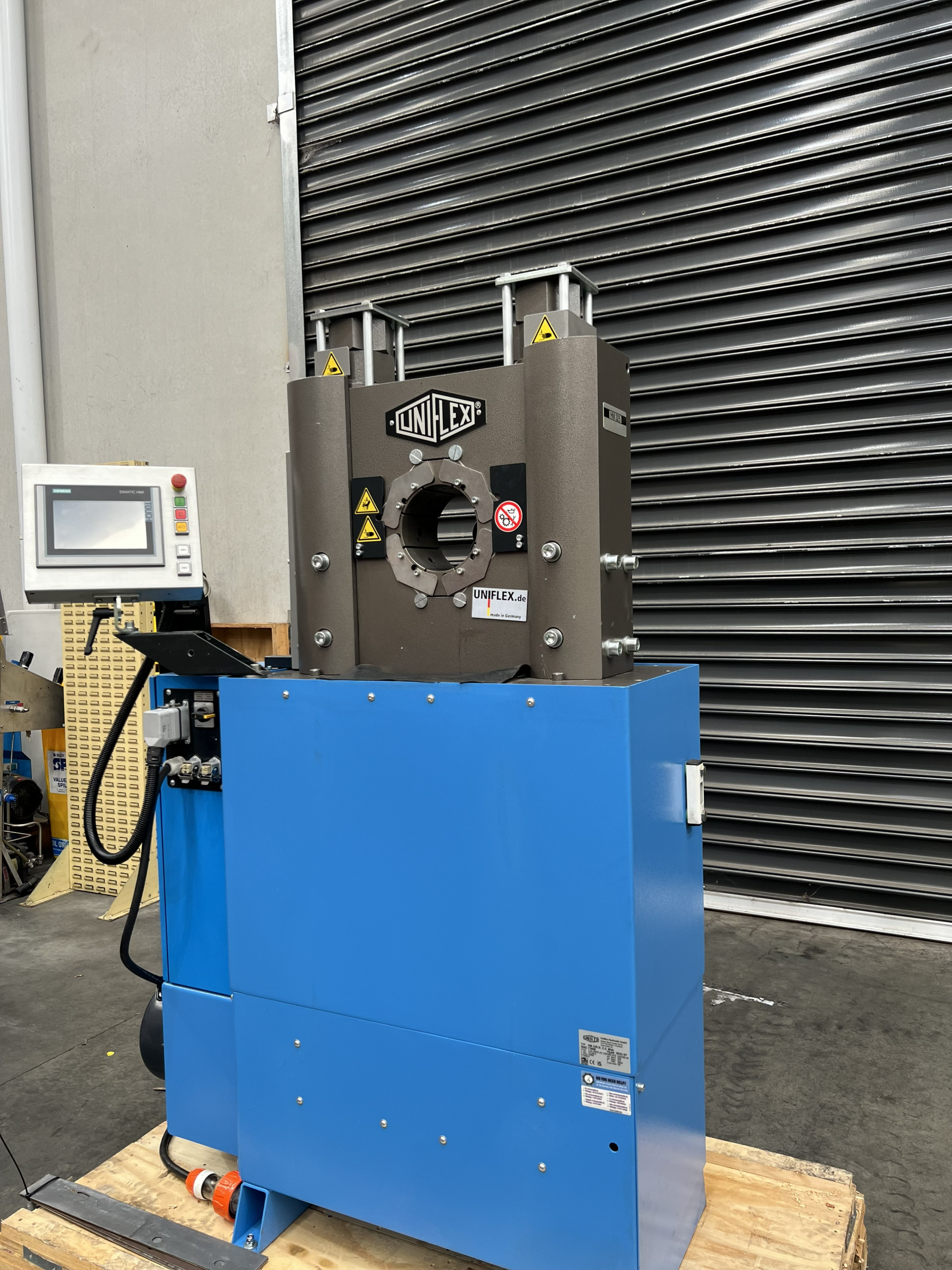

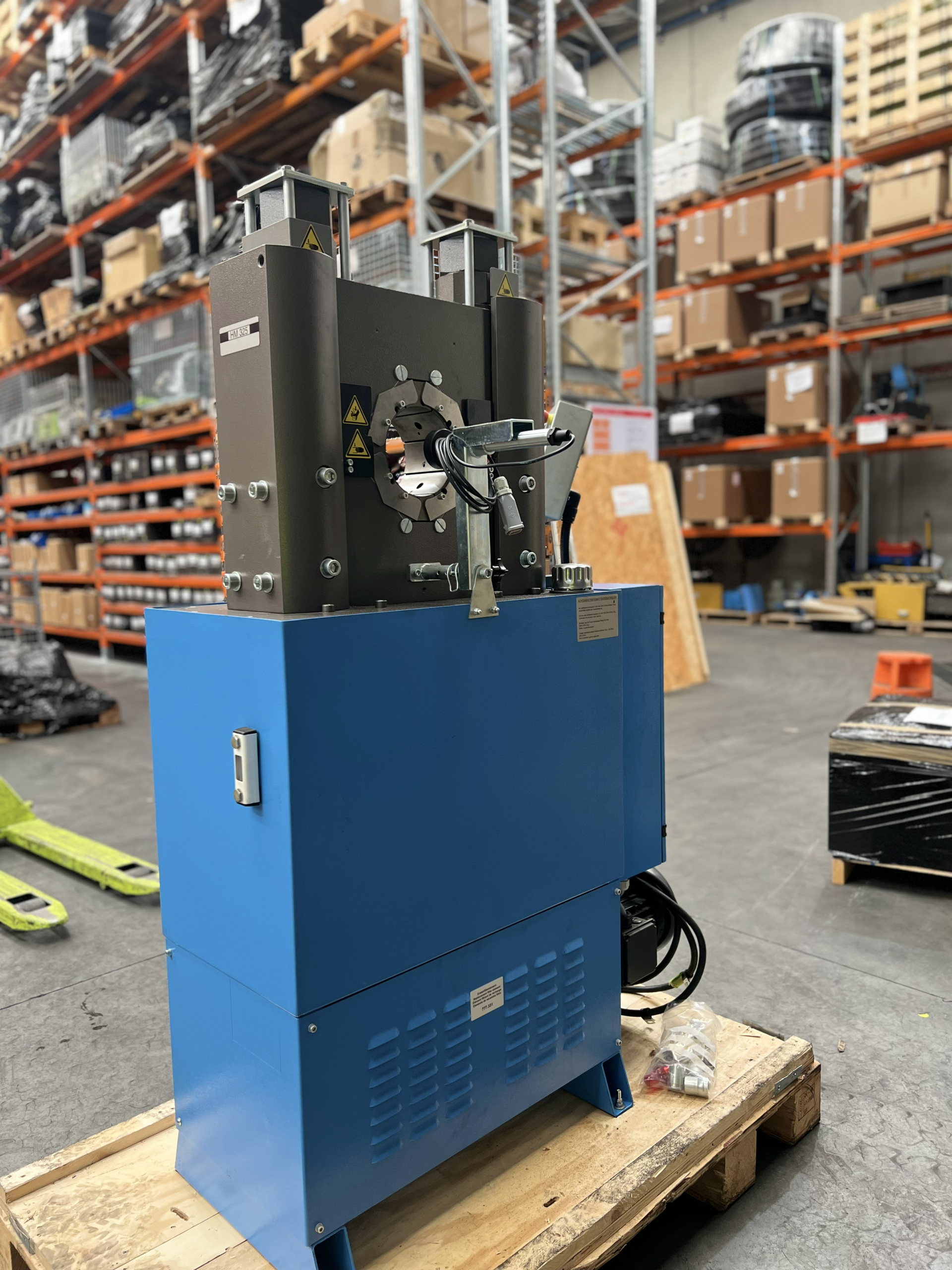

Floor-standing 280 ton production crimper for hydraulic and industrial hose, fitted with the Control C.2 touch control. Greaseless slide bearings and the Conicity Guard System hold crimp accuracy across long production runs.

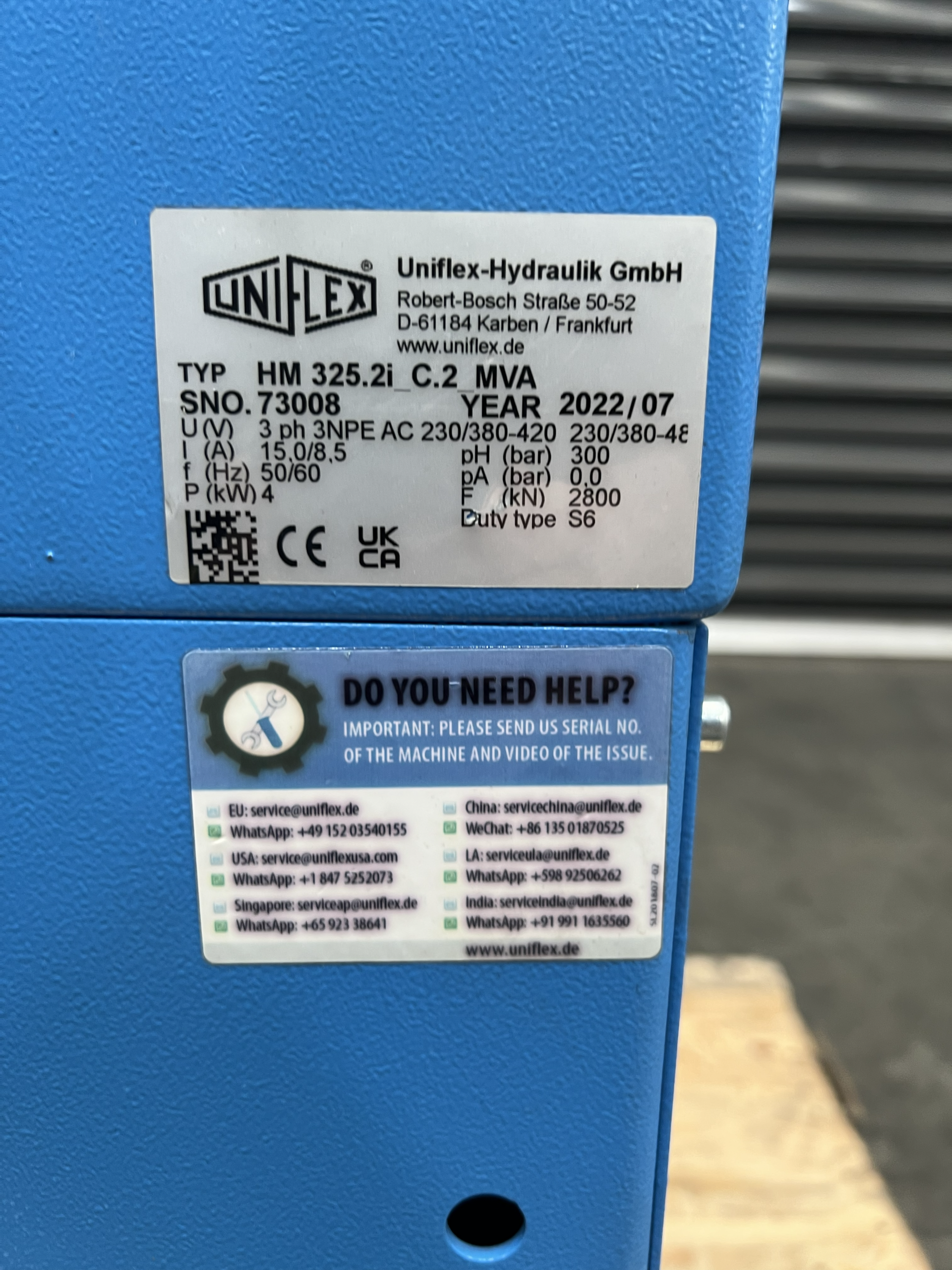

Model Number: HM 325I

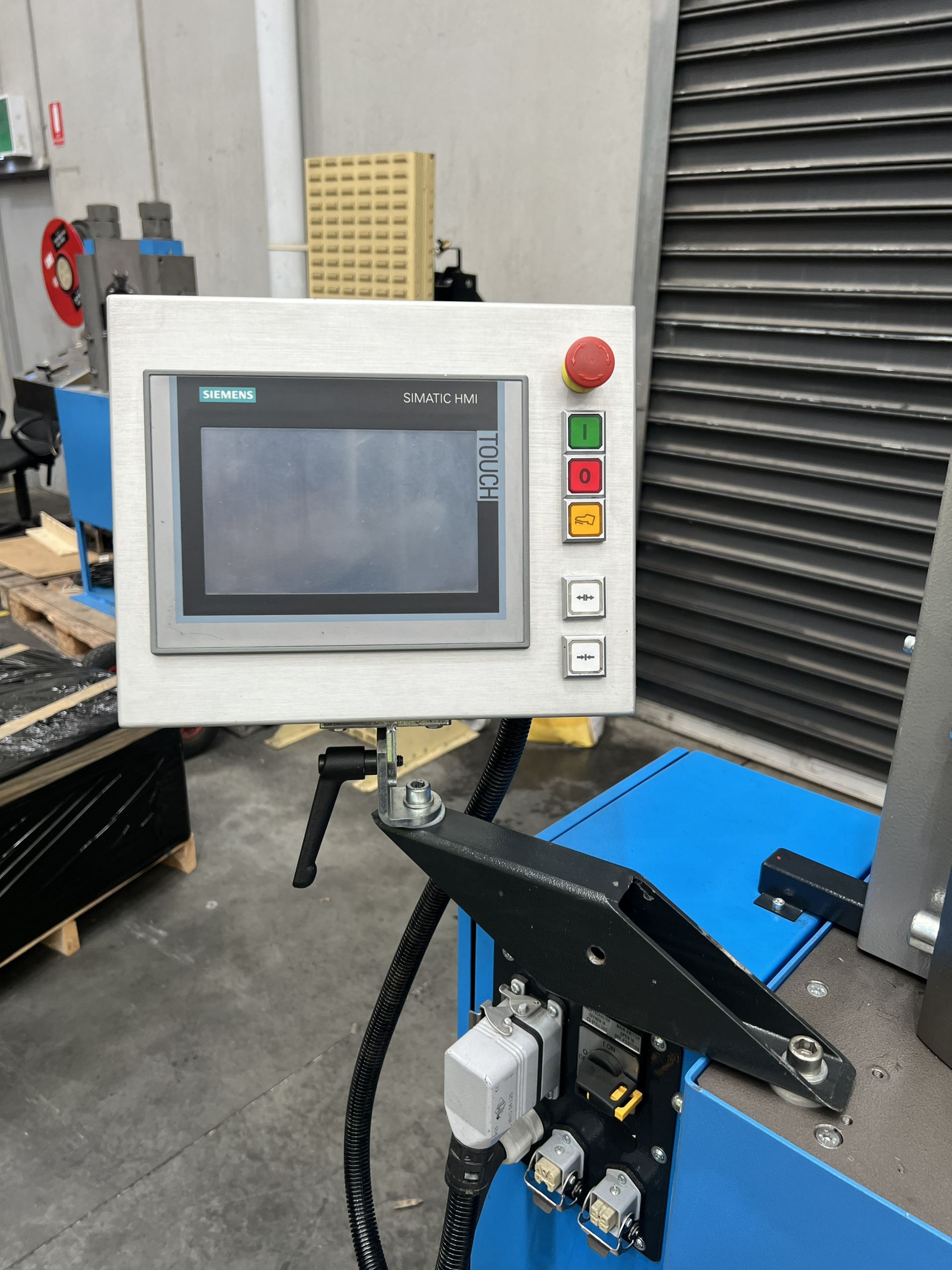

Control: Control C.2 with Touch
Crimp Force: 2,800 kN / 280 ton
Supply: 4 kW, 3 phase
Capacity, 4SH 1 Piece Fitting: 2 inch
Capacity, 4SH 2 Piece Fitting: 2 inch
Capacity, Industrial Hose: 4 inch
Capacity, 90 Degree Elbows: 3 inch
Crimp Range: 165 mm
Opening Without Dies: 215 mm
Master Die Length: 126 mm
Oil Capacity: 100 l
Noise Level: 69 dBA
Dimensions (L x W x H): 1200 x 600 x 1700 mm
Weight: 750 kg

Die System: 237 series
