Description

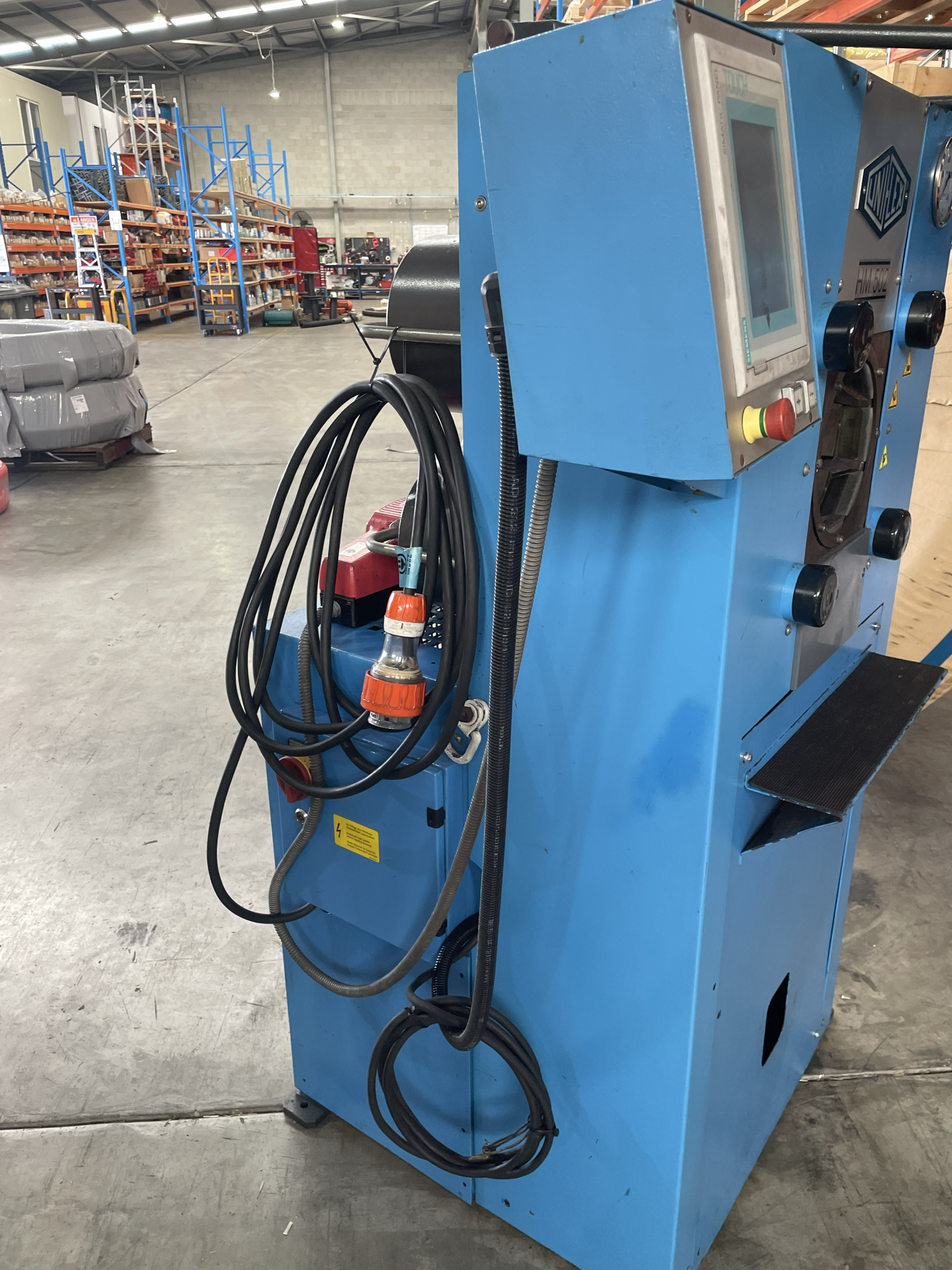

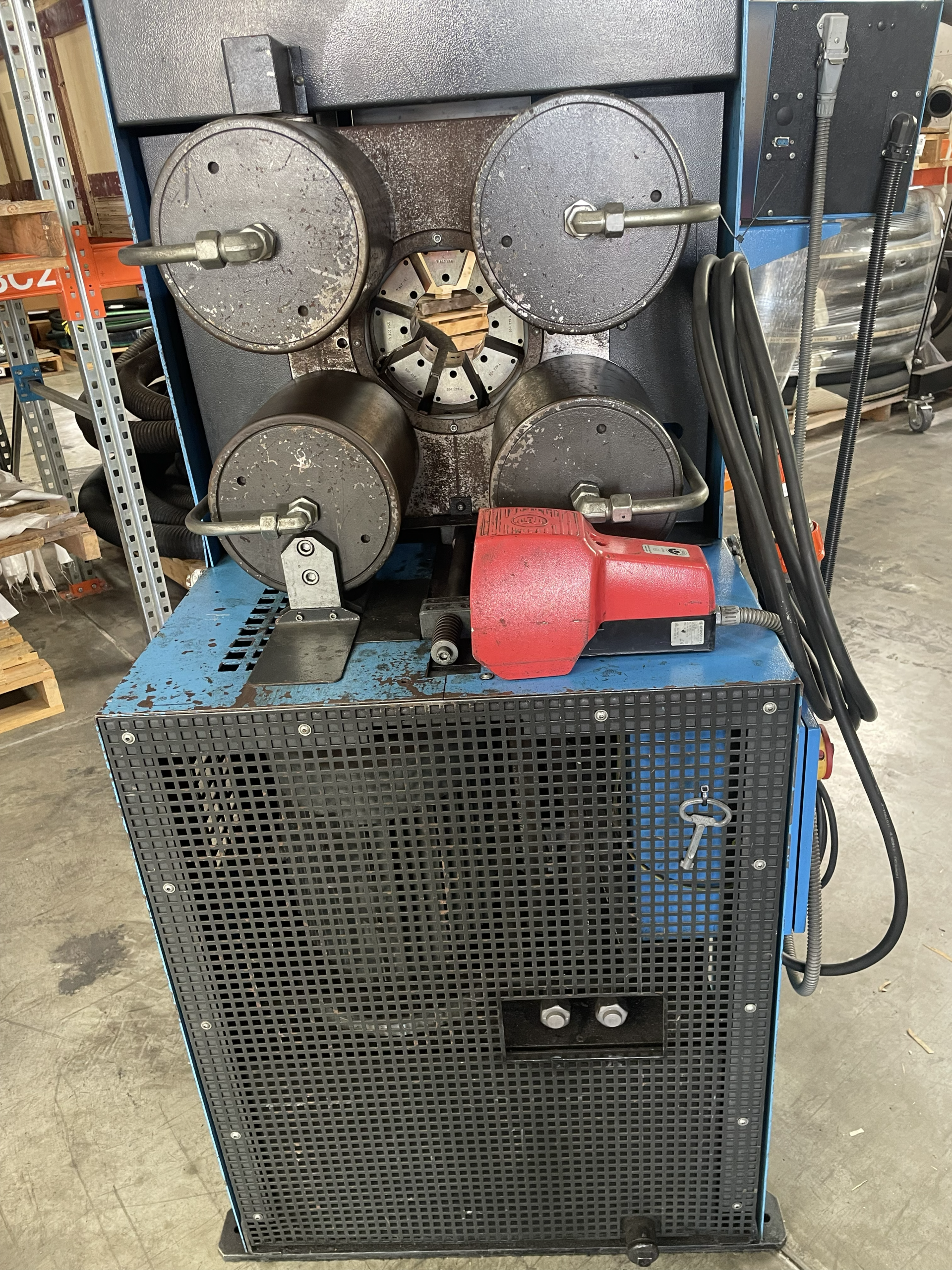

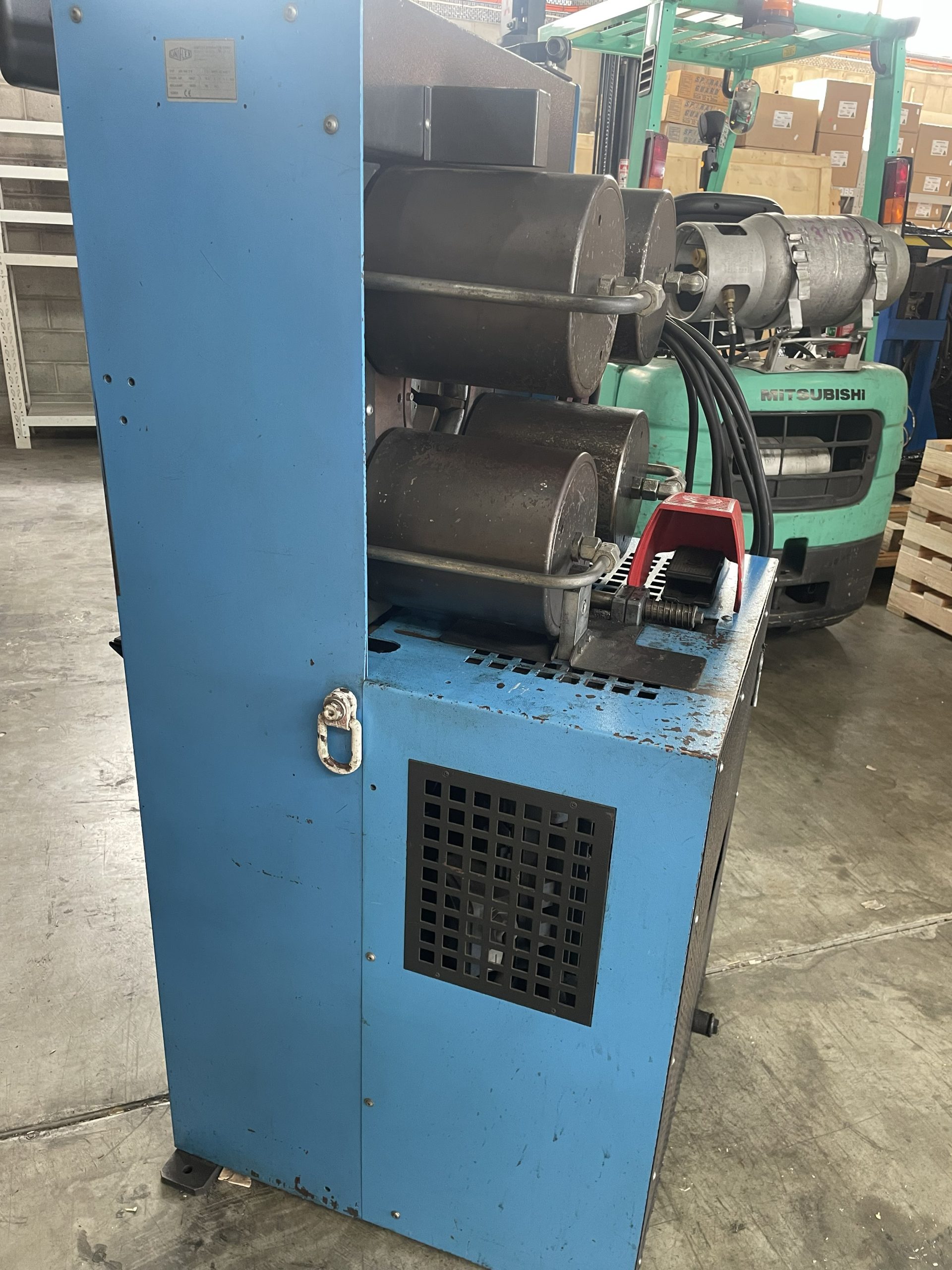

Floor-standing 530 ton crimping machine for large bore hydraulic and industrial hose, fitted with the UNIMATIControl B Plus touch control.

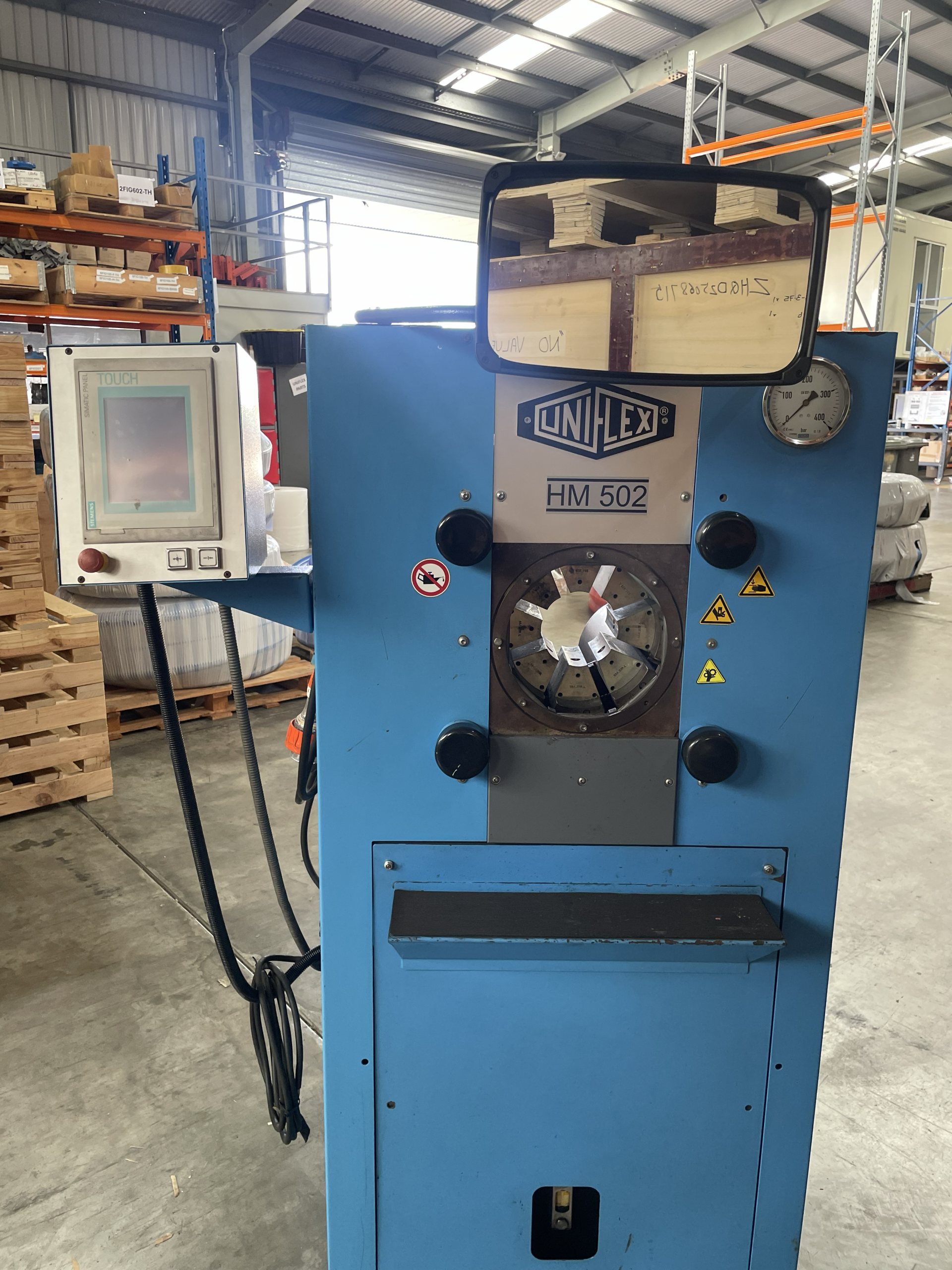

Model Number: HM 502
Control: UNIMATIControl B Plus
Crimp Force: 5,300 kN / 530 ton
Supply: 7.5 kW, 3 phase
Capacity, SAE R12 1 Piece Fitting: 2 inch
Capacity, SAE R12 2 Piece Fitting: 3 inch
Max. Crimp Range: 180 mm
Opening Without Dies: 240 mm
Opening Path: plus 70 mm
Oil Capacity: 100 l
Noise Level: 68 dBA
Dimensions (L x W x H): 1300 x 700 x 1560 mm
Weight: 1200 kg

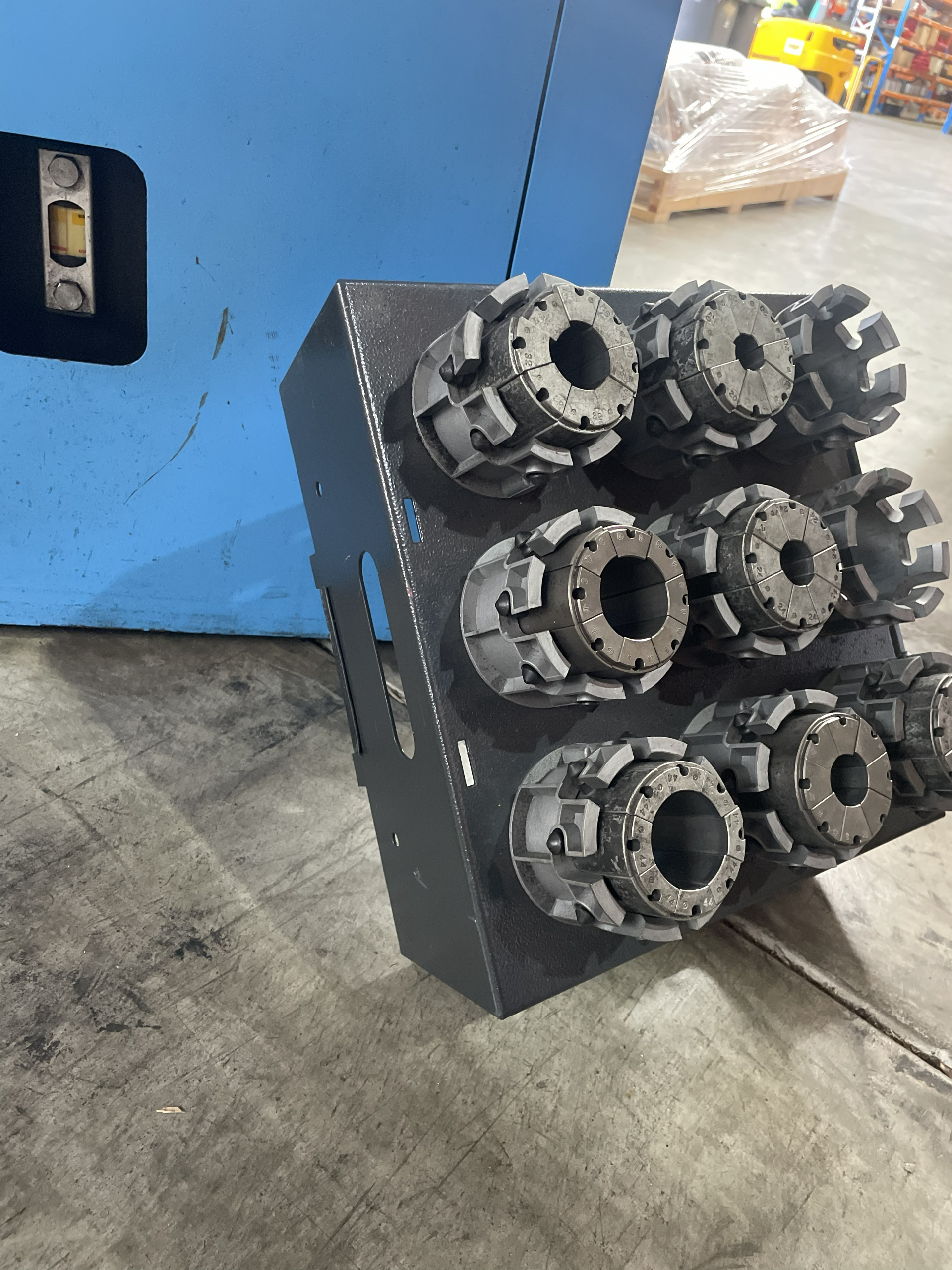

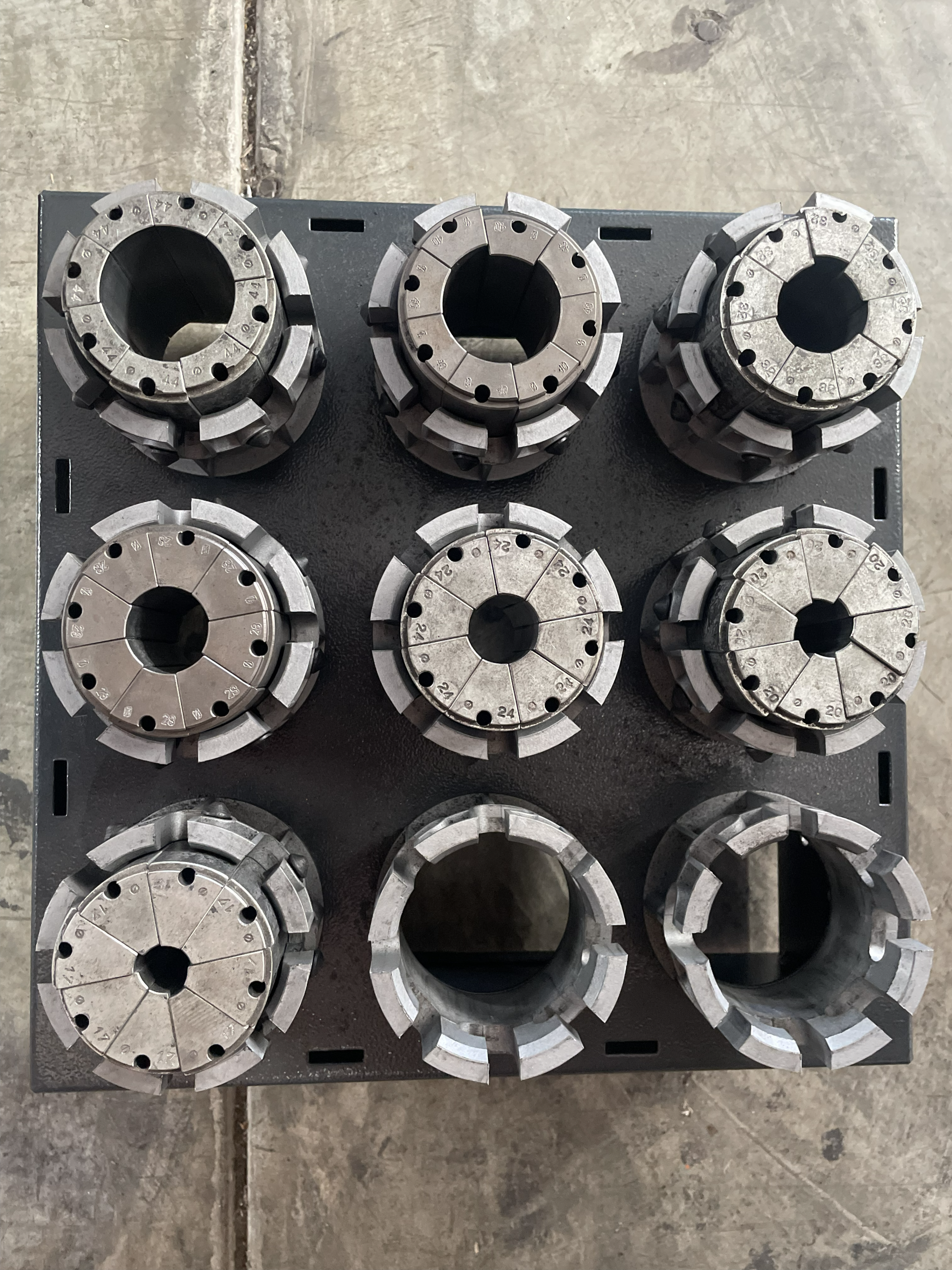

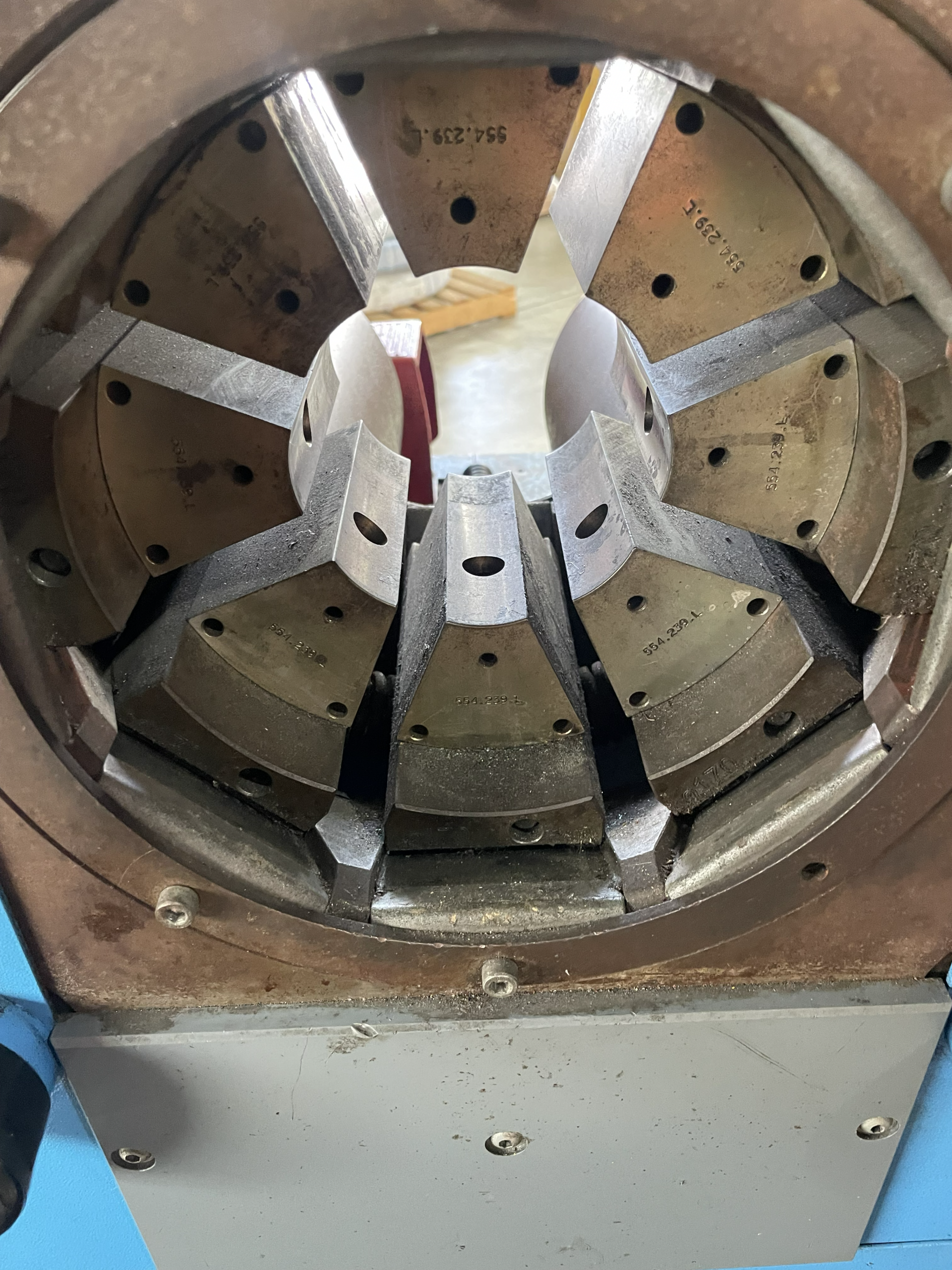

Die System: 239 series
