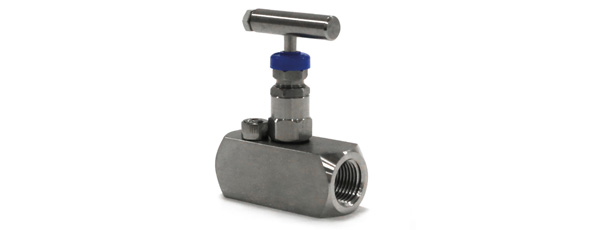

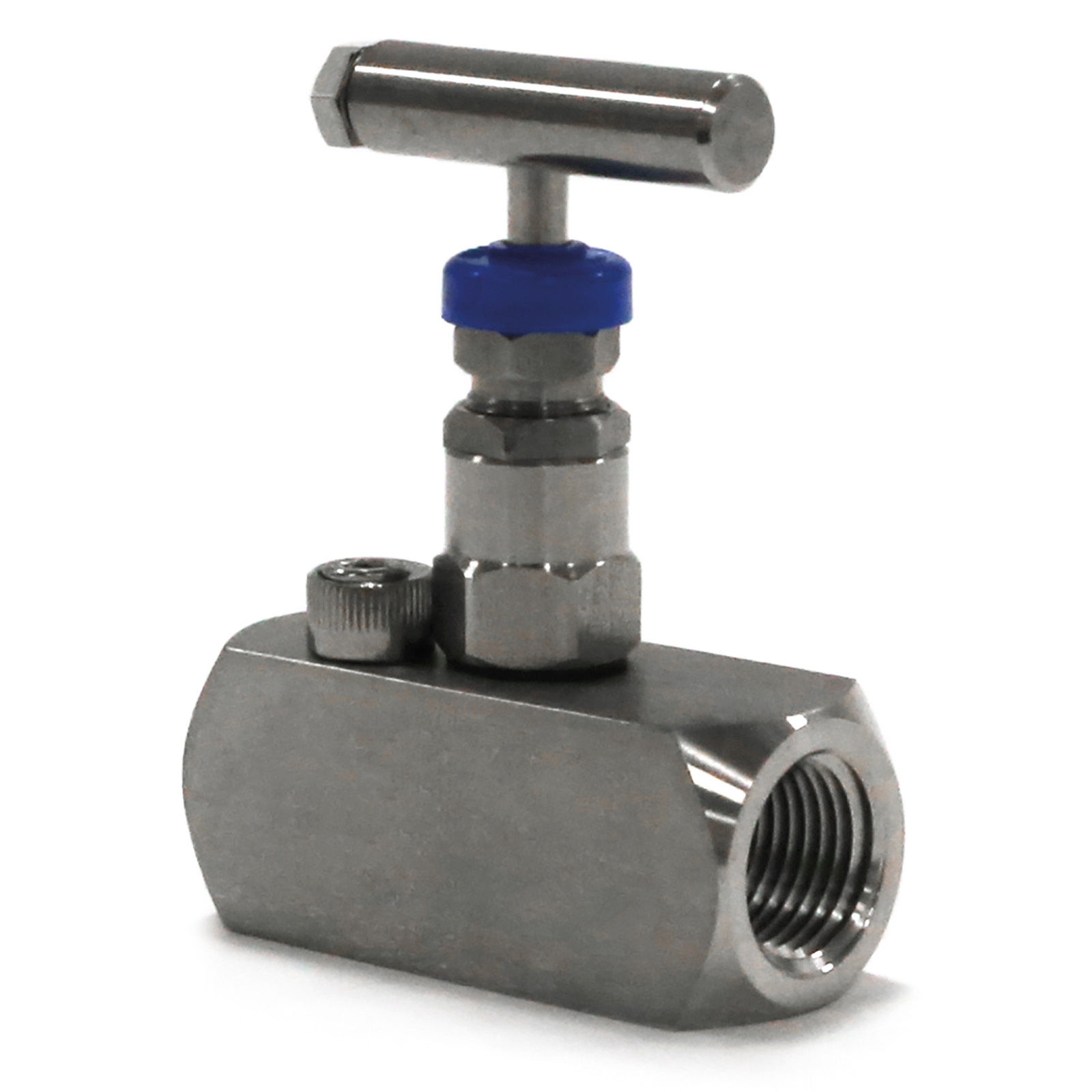

The precision made ‘N’ Series, single isolation hand valve utilising metal to metal seat and body to bonnet connection for superior, bubble tight sealing capabilities at both extreme pressures and temperatures. The ‘N’ Series also offers non-rotating hardened tip for extended service life. The unique anti-vibration cam locking device at the body bonnet connection is for extra safety. Working pressures are 6,000 psi and 10,000 psi.

Optional Features

•     •   Vale Types: Single Isolate.
•     •    Pressure Rating: 6,000 – 10,000 psi.
•     •    Temperature Range: -46°C up to 570°C.
•     •    Connection Size: 1/4″ – 1″.
•     •    Inlets: NPT, BSPP, BSPT, Butt Weld, Socket Weld, Compression Ended (Twin Ferrule).
•     •    Outlets: NPT, BSPP, BSPT, Butt Weld, Socket Weld, Compression Ended (Twin Ferrule).
•     •    Handles: T Bar, Handwheel, Lockable.

Material Options

•     •   Material Construction:
  •                •    Stainless Steel 316.
  •                •    Monel.
  •                •    Duplex.
  •                •    Super Duplex.
  •                •    6Mo.
  •                •    Titanium.
  •                •    Hastalloy.
  •                •    Zirconium.
  •                •    Inconel.
  •                •    Incoloy.
  •                •    Carbon Steel.
  •                •    Ali Bronze.
  •                •    PTFE/PEEK Packing.
  •                •    Graphite Packing.
  •                •    Other Materials Available upon request.
•     •   Trim Material: Options available upon request.
•     •   Bolting Material: Not Applicable.
•     •   Material Traceability: Yes, as applicable.

Testing & Design Standards

•     •   Testing Standards: Generally in accordance with API 598.
•     •   Design Specifications: Manufacturers Standard
•     •   Fire Safe Standards: Optional Firesafe.
•     •   Relevant Approvals: Not Applicable.
