Description
Abdex Drilling Hose | WP 207 to 345 Bar | Oil drilling and exploration
 |  mm | inch |  mm |  bar | psi |  bar | psi |  mm |  kg/m |
|---|---|---|---|---|---|---|
| RD3K-48 | 76 | 3 | 98 | 207 | 3,000 | 517 | 7,500 | 1,000 | 6.9 |
| RD5K-48 | 76 | 3 | 104 | 345 | 5,000 | 861 | 12,500 | 1,000 | 11.1 |
| RD5K-56 | 89 | 3 1/2 | 121 | 345 | 5,000 | 861 | 12,500 | 1,200 | 14.1 |
For 2in bore, or where air, blast hole and shot hole service is the primary duty, see the Rotary Drilling & Air Hose range.
Applications
Flexible connection between the upper end of the stand pipe and the top drive or swivel, and between the pump and the lower end of the standpipe, for pumping mud at high pressure in oil drilling and exploration work. The 3in bore carries a core tube suitable for use in air drilling applications.
Features
– 3in bore covers both mud and air drilling duty, so one hose does the work of two
– 3 1/2in bore available for high volume mud transfer
– Multi-layer spiral steel wire reinforcement holds 5,000 psi while staying flexible enough for rig movement
– Abrasion, oil and weather resistant cover for exposed standpipe and rig deck runs
– Service temperature range I / II / III, FSL 1/2
– Design factor 2.5:1

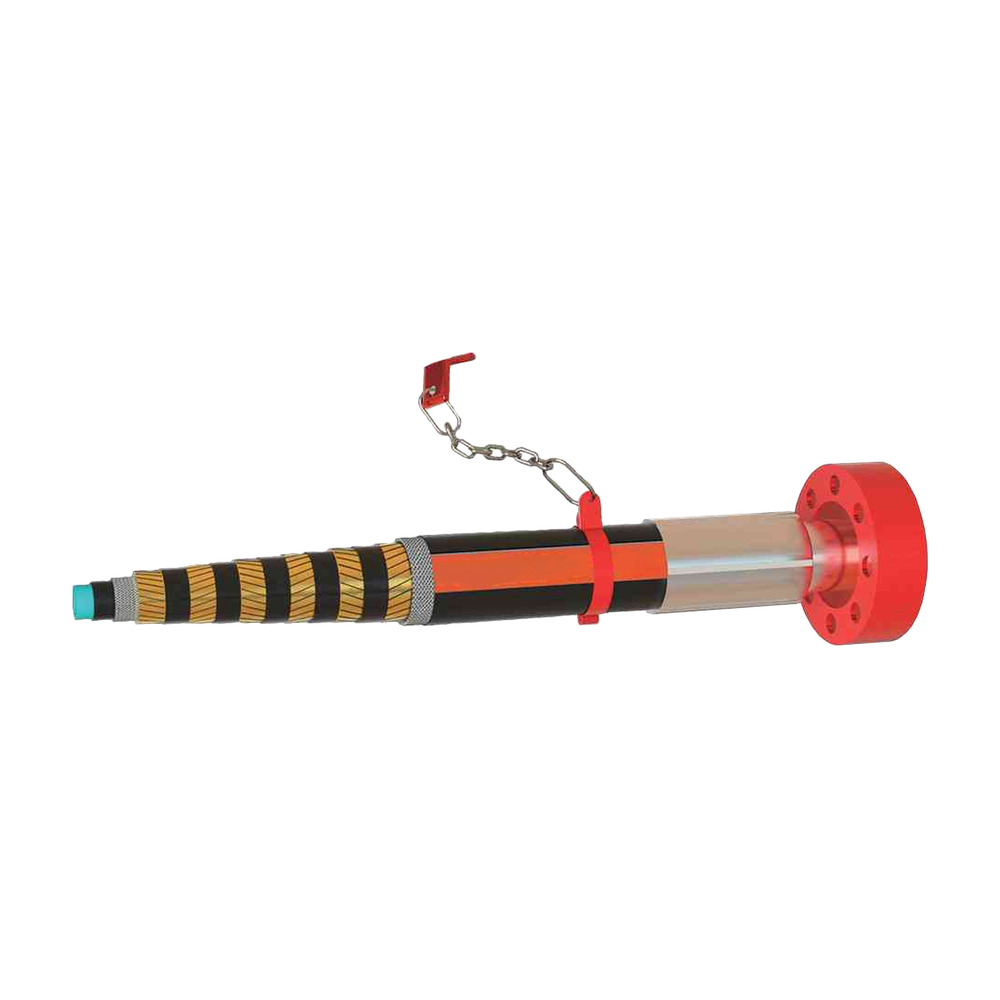

Construction
Core tube: 3in special blend synthetic rubber, full flow. 3 1/2in synthetic rubber, full flow.
Pressure reinforcement: Multi-layer high tensile super flexible spiral steel wire.
Cover: Abrasion, oil and weather resistant synthetic rubber.
Colour: Black and red.
Temperature Range
-20°C to +121°C
