Breakaway Couplings

Marine Break-Away Couplings

Marine versions of Safety Break-Away Couplings are designed to be installed within lengths of hoses. The coupling is assembled with a length of hose attached to each side.

This coupling incorporates the same internal mechanism as our Industrial Coupling, with additional features that provide increased resistance to torsional and bending forces, particularly important when used in the unpredictable marine environment. Marine Safety Break-Away Couplings are designed to release by inline pulling.

Typical applications include ship to offshore platform, ship to ship product transfer and bunkering operations.

Categories: , ,

Description

Breakaway Coupling – Shop Safety Breakaway Coupling at Abdex.

At Abdex, we supply breakaway couplings from Manntek engineered for maximum safety and reliability in demanding transfer applications. Whether you’re working in marine, chemical, fuel, or industrial operations, a breakaway coupling acts as the critical safety link – preventing pull-away accidents, protecting terminals and equipment, and eliminating unwanted product spillage.

We stock and supply MannTek Breakaway Couplings along with trusted alternatives, with options available in a wide range of sizes, pressure ratings, and materials to suit your application.

Why Choose A Breakaway Coupling?
  •     •   Automatic shut off valves: instantly seal both ends on separation, preventing leaks.
  •     •   Protects operators, equipment & environment –  reduces downtime and costly cleanups.
  •     •   Designed as the weakest link: engineered to safely disconnect before hoses or arms are damaged.
  •     •   Versatile across industries: Petroleum, chemical, gas, LNG, food and more.
Types of Breakaway Couplings
Marine Breakaway Coupling
  •     •   Releases only under straight pull.
  •     •   Ideal for ship to ship and ship to shore transfers.
  •     •   Installed between two strings of hose for maximum safety.
Industrial Breakaway Coupling.
  •     •   Releases under tension from 0–90° angles.
  •     •   Protects terminals, road tankers, chemical plants, and bulk storage facilities.
  •     •   Suitable for fixed or flexible installations.
  •
Technical data
  •     •   Sizes: 1″ (DN25) to 12″ (DN300). Other sizes on request.
  •     •   Working Pressure: 10 / 16 / 25 bar or 150 / 300 psi
  •     •   Test Pressure: 15 / 24 / 38 bar or 225 / 450 psi
  •     •   Coupling Materials: Aluminium, Brass, Stainless steel, Hastelloy, Titanium. Other material on request.
  •     •   Connections: Female and Male BSP/NPT, flanged DIN and ANSI. Other connections on request.

Mann-Tek Break-Away Couplings interchange with other brands such as Klaw, Todo and RS Seliger.


Catalogue Download

Break-Away Couplings

Types

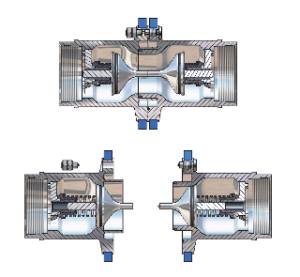

Marine Type
A Marine Breakaway Coupling will not release in any angular pull, only at straight pull. Marine Breakaways should always be installed between two strings of hose.

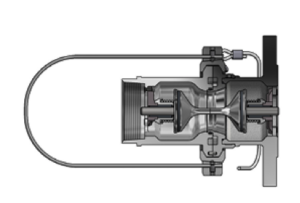

In Service
The coupling consists of two halves, each with a valve.

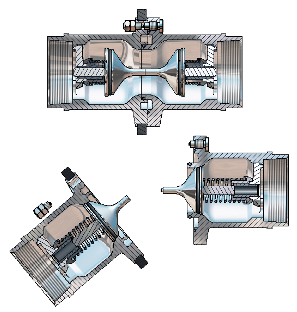

Industrial Type
A Industrial Breakaway Coupling will release in any angle from 0-90 degrees. Industrial Breakaways should always be installed to minimum one fixed point

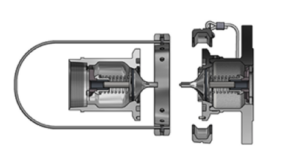

Released
After an emergency disconnection the coupling separates and both valves close immediately.

Related Products

FAQ

To safely disconnect transfer lines during an unexpected pull-away, preventing spills and equipment damage.

Yes – available for fuels, chemicals, gases, LNG, cryogenics, and even foodstuffs.

Yes – simply replace the breaking bolts and reconnect.
