Description

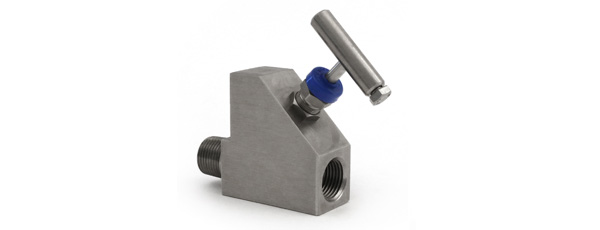

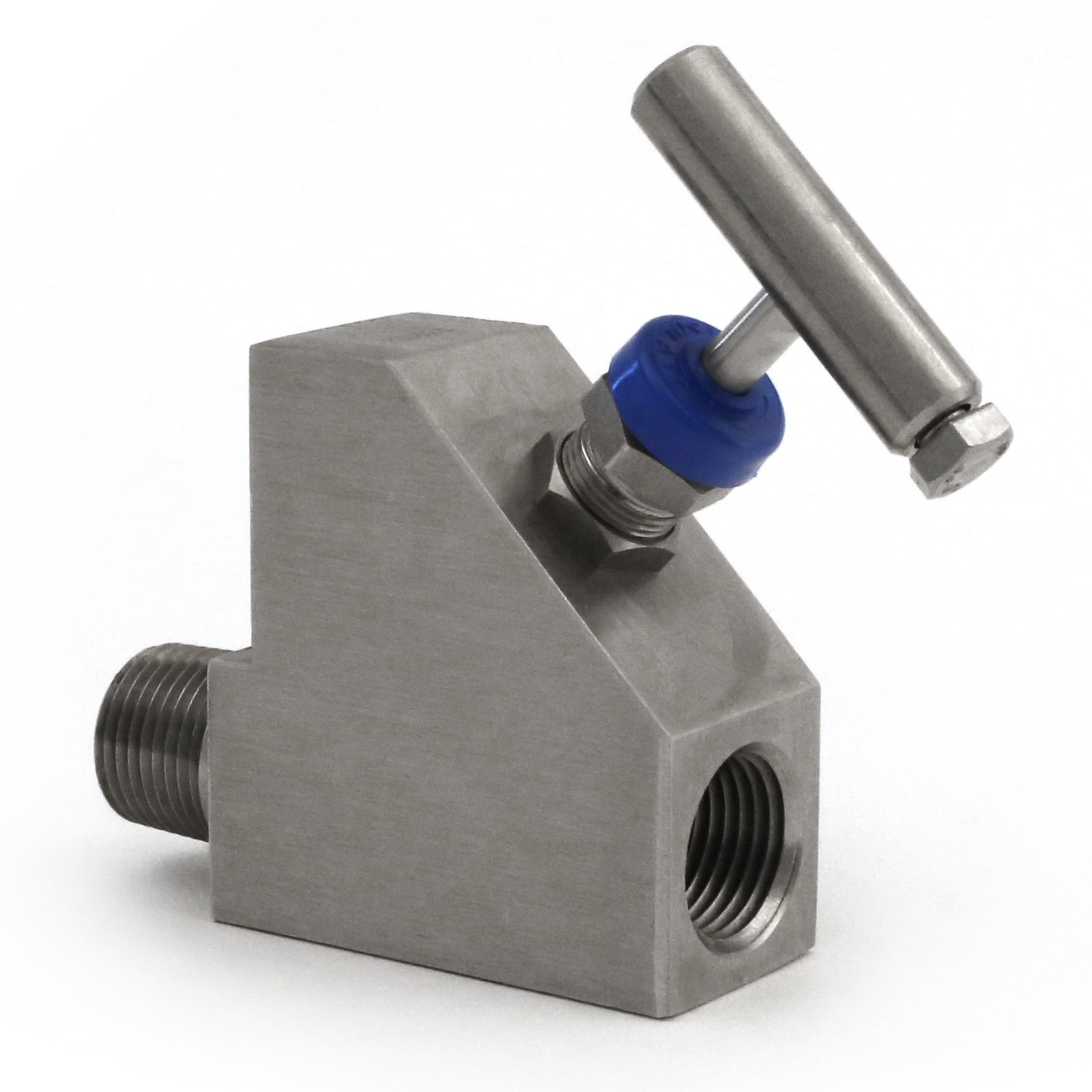

The in-line oblique needle valve includes 6,000 psi and 10,000 psi versions. Available in Male x Female and Female x Female versions. Options such as hand wheel and locking device available.
Optional Features
- • Pressure Rating: 6,000 – 10,000 psi.
- • Temperature Range: -46°C up to 570°C.
- • Connection Size: 1/4″ – 1/2″.
- • Inlets: NPT, BSPP, BSPT.
- • Outlets: NPT, BSPP, BSPT.
- • Handles: T Bar, Lockable, Handwheel.
Material Options
- • Material Construction:
- • Stainless Steel 316.
- • Monel.
- • Duplex.
- • Super Duplex.
- • 6Mo.
- • Titanium.
- • Hastalloy.
- • Zirconium.
- • Inconel.
- • Incoloy.
- • Carbon Steel.
- • Ali Bronze.
- • PTFE/PEEK Packing.
- • Graphite Packing.
- • Other Materials Available upon request.
- • Trim Material: Options available upon request.
- • Bolting Material: Not Applicable.
- • Material Traceability: Yes, as applicable.
Testing & Design Standards
- • Testing Standards: Generally in accordance with API 598.
- • Design Specifications: Manufacturers Standard
- • Fire Safe Standards: Optional Firesafe.
- • Relevant Approvals: Not Applicable.
