PTFE – General applications

304 Braid	316 Braid	size | mm	mm	bar | psi	bar | psi	mm	gr/m
PTFE-04	PTFE-04-316	6.7 | 6.96	9.86	224 | 3,248	672 | 9,746	76	92
PTFE-05	PTFE-05-316	8.4 | 8.66	11.56	207 | 3,002	621 | 9,006	102	141
PTFE-06	PTFE-06-316	10.3 | 10.64	14.1	183 | 2,654	552 | 8,006	133	148
PTFE-08	PTFE-08-316	13.4 | 13.36	17.22	161 | 2,335	483 | 7,005	152	249

Applications

The inner hose core is manufactured from PTFE. No pigments or additives are incorporated, thus giving the hose liner a translucent appearance free from any contamination.

Features

• Excellent Chemical Resistance.
• High Temperature Resistance.
• Low coefficient of friction which ensures low pressure drop.

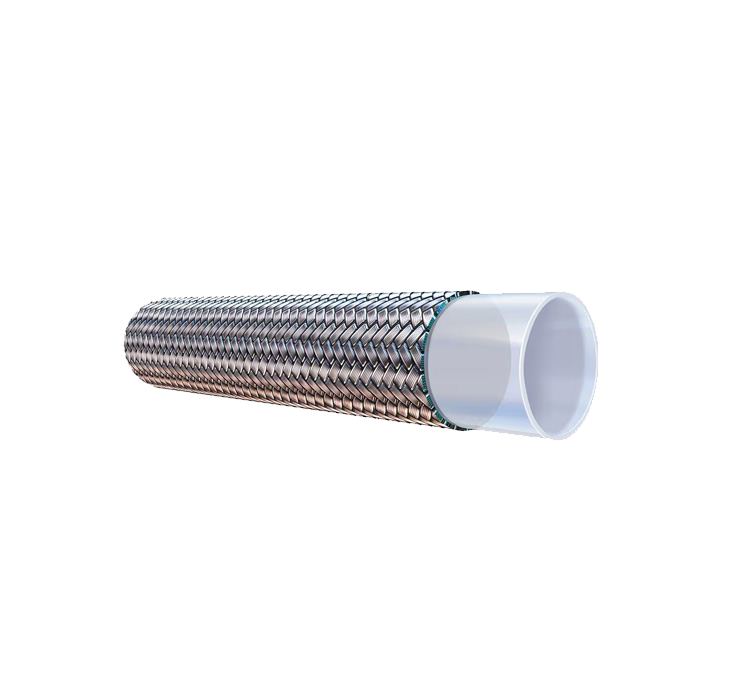

Construction

Core tube: Smoothbore
Pressure reinforcement: PTFE Virgin / Anti-static Inner Tube
Outer cover: 304 Stainless Steel, 316 available on request.

Temperature Range

-70 ̊C to 260 ̊C.
