Description
4 Way Diverter Valve

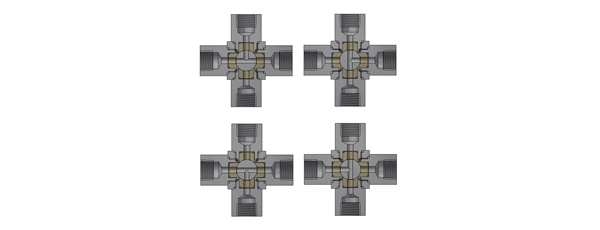

4 way diverter valve from Alco valve are a safe method of diverting high pressure lines. This replaces several high pressure 2-way valves. Ideal for sampling or vent / dumping applications. The X4 4 way diver valve is available in several flow configurations offering more flexibility and usefulness to any system design. X4DL configuration is supplied as standard
Optional Features
- • Vale Types: Diverter.
- • Pressure Rating: 1,000 – 6,000 psi.
- • Temperature Range: -46°C up to 225°C.
- • Bore Size: 5 mm (10 mm design available on request).
- • Connection Size: 1/4″ – 1″.
- • Inlets: NPT, BSPP, BSPT, Butt Weld, Socket Weld, Compression Ended (Twin Ferrule).
- • Outlets: NPT, BSPP, BSPT, Butt Weld, Socket Weld, Compression Ended (Twin Ferrule).
- • Handles: T Bar, Lever Option, Lockable.
Material Options
- • Material Construction:
- • Stainless Steel 316.
- • Monel.
- • Duplex.
- • Super Duplex.
- • 6Mo.
- • Titanium.
- • Hastalloy.
- • Zirconium.
- • Inconel.
- • Incoloy.
- • Carbon Steel.
- • Ali Bronze.
- • Brass
- • Other Materials Available upon request.
- • Trim Material: Options available upon request.
- • Bolting Material: Not Applicable.
- • Material Traceability: Yes, as applicable.
Testing & Design Standards
- • Testing Standards: Generally in accordance with API 598.
- • Design Specifications: Manufacturers Standard.
- • Fire Safe Standards: Not Applicable.
- • Relevant Approvals: Not Applicable.
