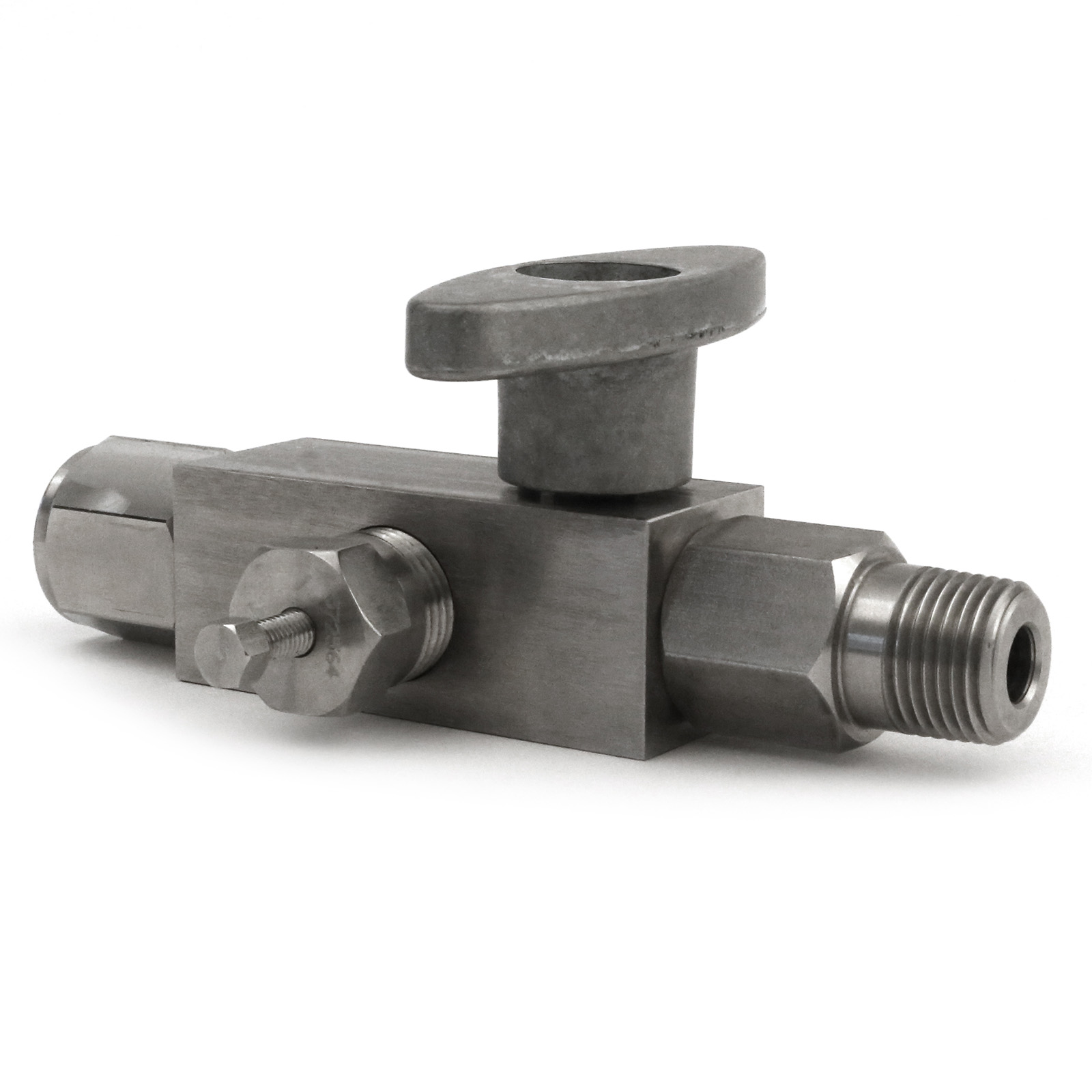

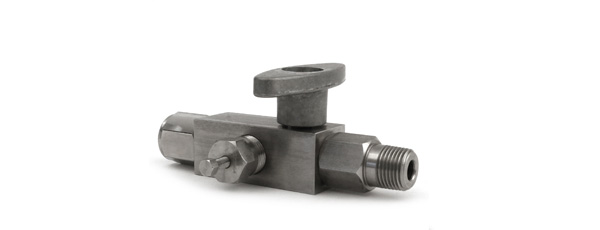

The multiport gauge (ball valve) is designed to provide an efficient method for mounting gauges with the facility to test and calibrate gauges and pressure switches.

Optional Features

•     •   Vale Types: Single Isolate.
•     •    Pressure Rating: 1,000 – 6,000 psi.
•     •    Temperature Range: -46°C up to 250°C.
•     •    Bore Size: 10 mm .
•     •    Connection Size: 1/4″ – 1″.
•     •    Inlets: NPT, BSPP, BSPT, Compression Ended (Twin Ferrule), Socket Weld, Butt Weld.
•     •    Outlets: NPT, BSPP, BSPT, Compression Ended (Twin Ferrule), Socket Weld, Butt Weld.
•     •    Handles: T Bar, Lever Option, Lockable.

Material Options

•     •   Material Construction:
  •                •    Stainless Steel 316.
  •                •    Monel.
  •                •    Duplex.
  •                •    Super Duplex.
  •                •    6Mo.
  •                •    Titanium.
  •                •    Hastalloy.
  •                •    Zirconium.
  •                •    Inconel.
  •                •    Incoloy.
  •                •    Carbon Steel.
  •                •    Ali Bronze.
  •                •    PTFE/PEEK Packing.
  •                •    Graphite Packing.
  •                •    Other Materials Available upon request.
•     •   Trim Material: Options available upon request.
•     •   Bolting Material: Not Applicable.
•     •   Material Traceability: Yes, as applicable.

Testing & Design Standards

•     •   Testing Standards: Generally in accordance with API 598.
•     •   Design Specifications: Manufacturers Standard.
•     •   Fire Safe Standards: Not Applicable.
•     •   Relevant Approvals: Not Applicable.
