Description

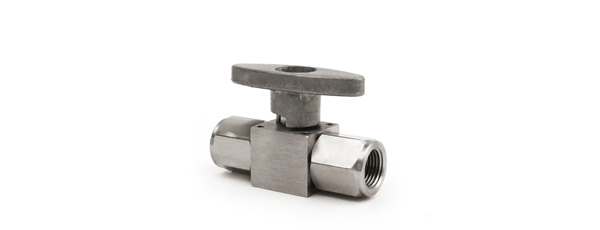

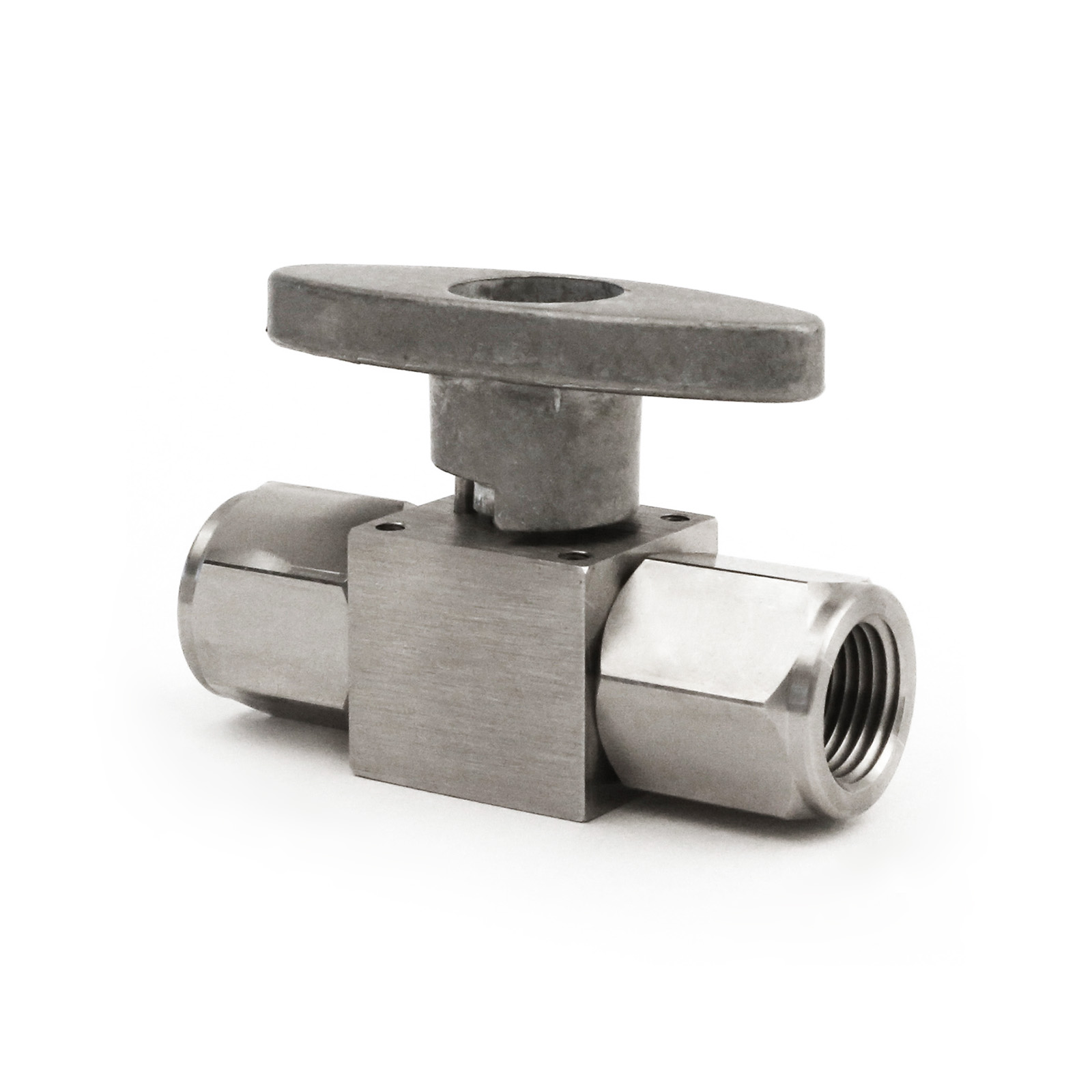

Flexible, safe and robust interchangeable valves with panel mounting style for actuation. Materials of construction can be supplied to meet requirements of NACE MR-01-75. Anti blowout system and a choice of end connections make this a compact but robust valve. Valves over 1″ two-piece design
Optional Features
- • Vale Types: Single Isolate.
- • Pressure Rating: 1,000 – 3,000 psi.
- • Temperature Range: -46°C up to 250°C.
- • Bore Size: 10 mm – 25 mm.
- • Connection Size: 1/4″ – 2″.
- • Inlets: NPT, BSPP, BSPT, Compression Ended (Twin Ferrule), Socket Weld, Butt Weld.
- • Outlets: NPT, BSPP, BSPT, Compression Ended (Twin Ferrule), Socket Weld, Butt Weld.
- • Handles: T Bar, Lever Option, Lockable, Bare Stem.
Material Options
- • Material Construction:
- • Stainless Steel 316.
- • Monel.
- • Duplex.
- • Super Duplex.
- • 6Mo.
- • Titanium.
- • Hastalloy.
- • Zirconium.
- • Inconel.
- • Incoloy.
- • Carbon Steel.
- • Ali Bronze.
- • PTFE/PEEK Packing.
- • Graphite Packing.
- • Other Materials Available upon request.
- • Trim Material: Options available upon request.
- • Bolting Material: Not Applicable.
- • Material Traceability: Yes, as applicable.
Testing & Design Standards
- • Testing Standards: API 598.
- • Design Specifications: Manufacturers Standard.
- • Fire Safe Standards: ISO 10497.
