Description

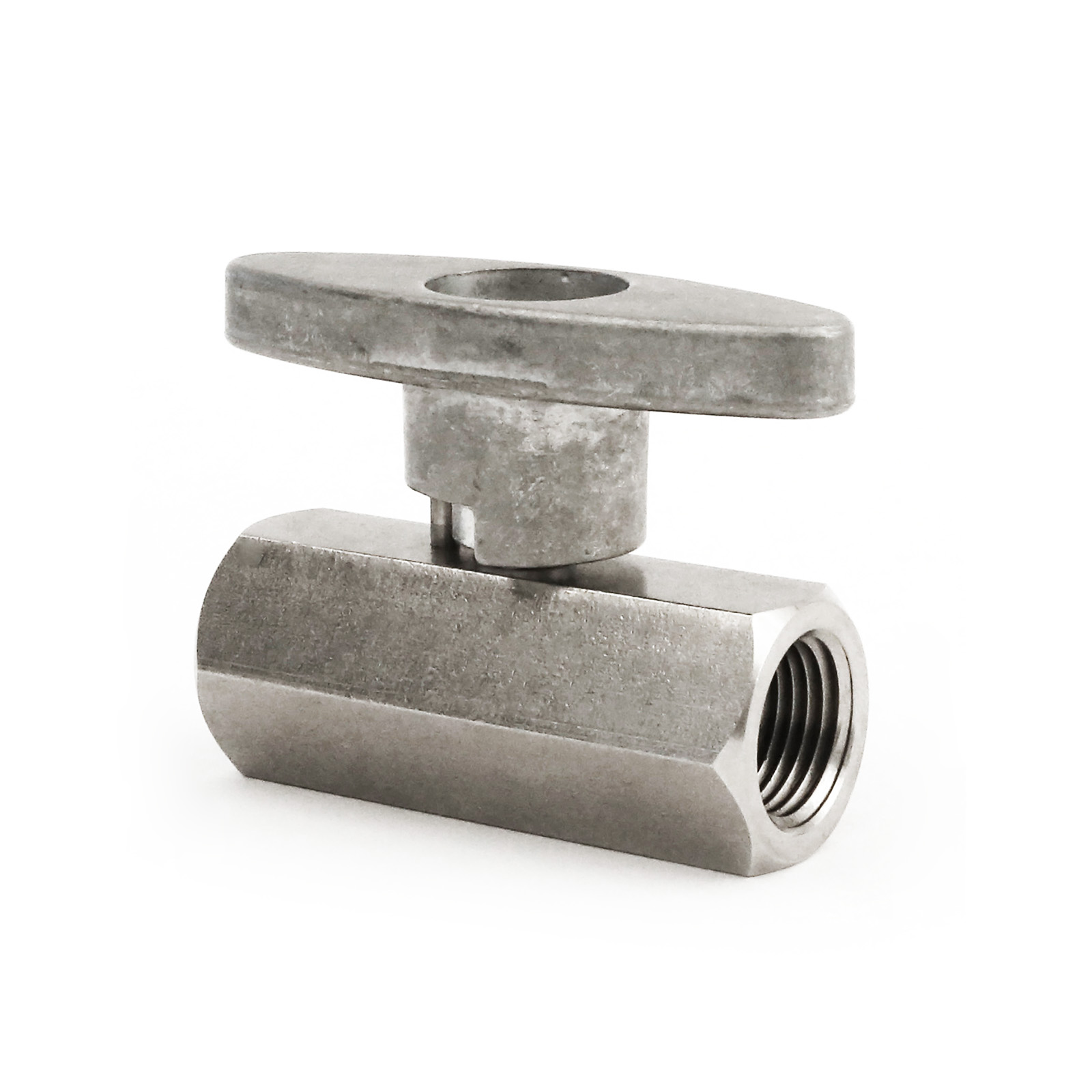

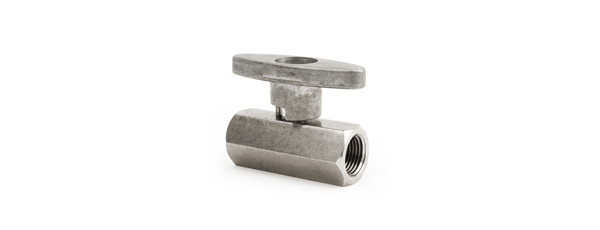

This design offers a safe and inexpensive style of valve suitable for a wide range of applications. It also offers fewer potential leak paths than cast or 3 piece valves and it is a rugged one piece solid body format. This valve is suitable for water, oil or gas applications. It is manufactured with a compact ‘T’ bar handle as standard with many more options available such as lever handle or locking device etc. Valves are non-repairable
Optional Features
- • Vale Types: Single Isolate.
- • Pressure Rating: Up to 2,000 psi.
- • Temperature Range: -46°C up to 230°C.
- • Bore Size: 10 mm – 32 mm.
- • Connection Size: 1/4″ – 2″.
- • Inlets: NPT, BSPP, BSPT.
- • Outlets: NPT, BSPP, BSPT.
- • Handles: T Bar, Lever Option, Lockable.
Material Options
- • Material Construction:
- • Stainless Steel 316.
- • Monel.
- • Duplex.
- • Super Duplex.
- • 6Mo.
- • Titanium.
- • Hastalloy.
- • Zirconium.
- • Inconel.
- • Incoloy.
- • Carbon Steel.
- • Ali Bronze.
- • PTFE/PEEK Packing.
- • Graphite Packing.
- • Other Materials Available upon request.
- • Trim Material: Options available upon request.
- • Bolting Material: Not Applicable.
- • Material Traceability: Yes, as applicable.
Testing & Design Standards
- • Testing Standards: Generally, in accordance with API 598.
- • Design Specifications: Manufacturers Standard.
- • Fire Safe Standards: Not Applicable.
- • Relevant Approvals: Not Applicable.
