Description

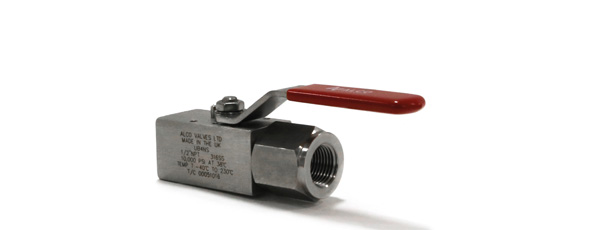

Alco are aware of the ever increasing operating pressures demanded by the industry, and for this reason have developed the “UB” Series of valves to accommodate these stringent requirements. The UB series is panel mountable.
Optional Features
- • Vale Types: Single Isolate.
- • Pressure Rating: 10,000 psi.
- • Temperature Range: -46°C up to 250°C.
- • Bore Size: 10 mm – 13 mm.
- • Connection Size: 1/4″ – 3/4″ (For 1″ Size see UE Series Ball Valve).
- • Inlets: NPT, BSPP, BSPT, Compression Ended (Twin Ferrule), Socket Weld, Butt Weld.
- • Outlets: NPT, BSPP, BSPT, Compression Ended (Twin Ferrule), Socket Weld, Butt Weld.
- • Handles: Pointer Handel, Lever Handle, Lockable, Bare Stem.
Material Options
- • Material Construction:
- • Stainless Steel 316.
- • Monel.
- • Duplex.
- • Super Duplex.
- • 6Mo.
- • Titanium.
- • Hastalloy.
- • Zirconium.
- • Inconel.
- • Incoloy.
- • Carbon Steel.
- • Ali Bronze.
- • PTFE/PEEK Packing.
- • Graphite Packing.
- • Other Materials Available upon request.
- • Trim Material: Options available upon request.
- • Bolting Material: Not Applicable.
- • Material Traceability: Yes, as applicable.
Testing & Design Standards
- • Testing Standards: Generally in accordance with API 598.
- • Design Specifications: MSS SP-99 and MS SP-105.
- • Fire Safe Standards: Optional Firesafe.
