Description

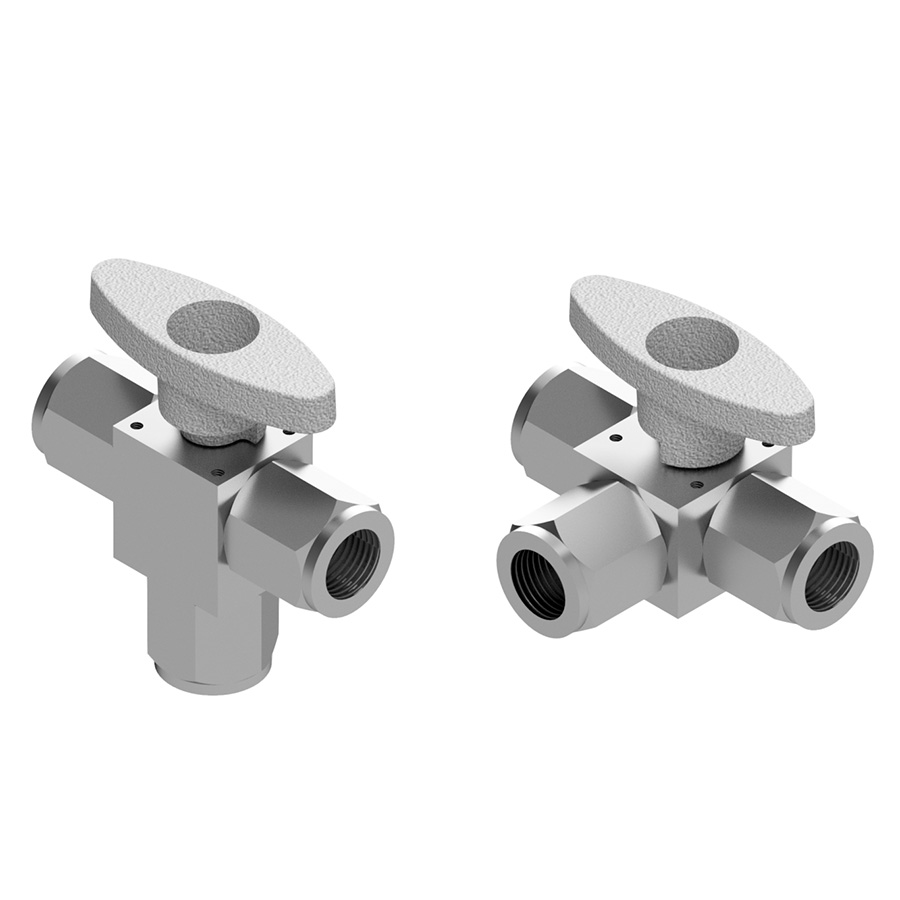

Ensuring an altogether safe, compact and easy to install solution to low and high pressure diversion. Available in bottom or side entry body formats.
Optional Features
- • Vale Types: Diverter / Selector.
- • Pressure Rating: 1,000 – 3,000 psi.
- • Temperature Range: -46°C up to 250°C.
- • Bore Size: 10mm – 19mm.
- • Connection Size: 1/4″ – 1″.
- • Inlets: NPT, BSPP, BSPT, Butt Weld, Socket Weld, Compression Ended (Twin Ferrule).
- • Outlets: NPT, BSPP, BSPT, Butt Weld, Socket Weld, Compression Ended (Twin Ferrule).
- • Handles: T Bar, Pointer Handle, Lever Option, Lockable, Bare Stem.
Material Options
- • Material Construction:
- • Stainless Steel 316.
- • Monel.
- • Duplex.
- • Super Duplex.
- • 6Mo.
- • Titanium.
- • Hastalloy.
- • Zirconium.
- • Inconel.
- • Incoloy.
- • Carbon Steel.
- • Ali Bronze.
- • PTFE/PEEK Packing.
- • Graphite Packing.
- • Other Materials Available upon request.
- • Trim Material: Options available upon request.
- • Bolting Material: Not Applicable.
- • Material Traceability: Yes, as applicable.
Testing & Design Standards
- • Testing Standards: Generally in accordance with API 598.
- • Design Specifications: Manufacturers Standard
- • Fire Safe Standards: Not Applicable.
- • Relevant Approvals: Not Applicable.
