Description

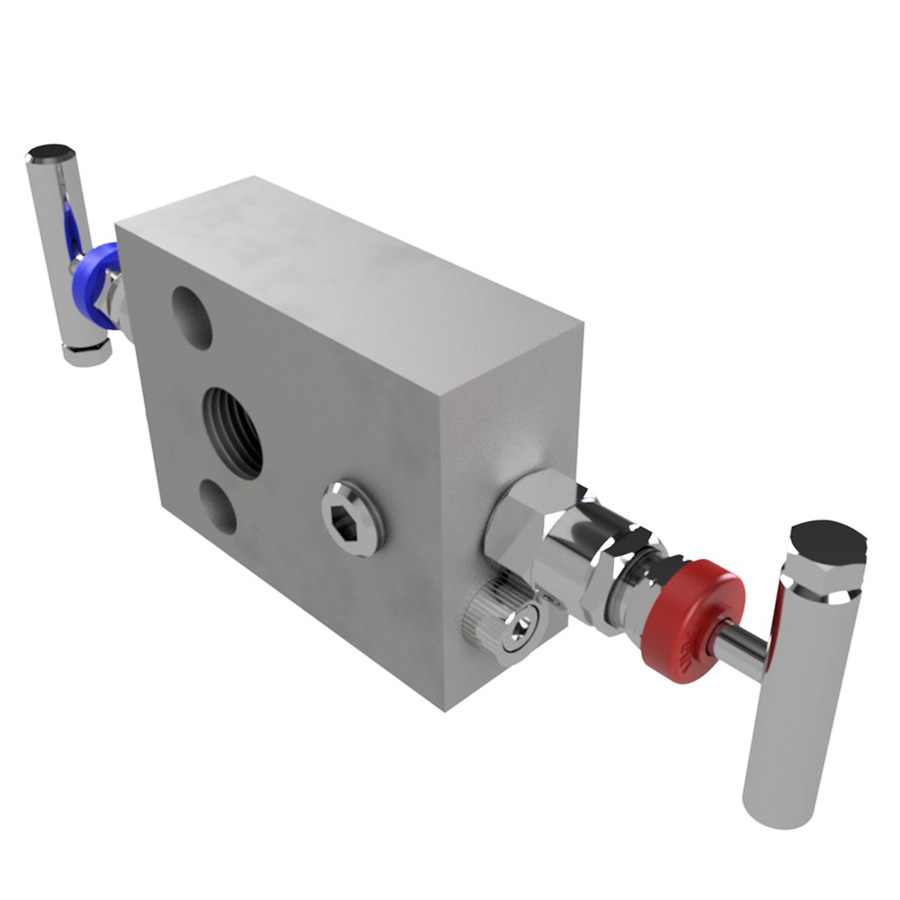

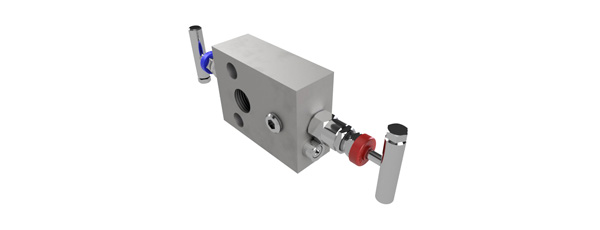

This compact unit offers single isolation, and vent / test facility (vent port 1/4” NPT). Supplied with bolt pack and seal as standard. Other options apply such as anti-tamper, lockable vent valve.
Optional Features
- • Vale Types: Block & Bleed
- • Pressure Rating: Up to 6,000 psi.
- • Temperature Range: -46°C up to 570°C.
- • Bore Size: 3 mm.
- • Connection Size: 1/4″ – 1/2″.
- • Inlets: NPT, BSPP, BSPT.
- • Outlets: Direct Mount (41 mm between mounting holes).
- • Handles: T Bar, Handwheel, Lockable.
Material Options
- • Material Construction:
- • Stainless Steel 316.
- • Monel.
- • Duplex.
- • Super Duplex.
- • 6Mo.
- • Titanium.
- • Hastalloy.
- • Zirconium.
- • Inconel.
- • Incoloy.
- • Carbon Steel.
- • Ali Bronze.
- • PTFE/PEEK Packing.
- • Graphite Packing.
- • Other Materials Available upon request.
- • Trim Material: Options available upon request.
- • Bolting Material: 7/16″ UNF Bolting Carbon Steel Standard Stainless Steel Optional.
- • Material Traceability: Yes, as applicable.
Testing & Design Standards
- • Testing Standards: Generally, in accordance with API 598.
- • Design Specifications: Manufacturers Standard.
- • Fire Safe Standards: Optional Firesafe.
- • Relevant Approvals: Not Applicable.
