Description
Technical Data
| Specification | Value |
|---|---|
| Nominal bore size | 1.75 to 29.34 mm (1/16″ to 1 1/8″) |
| Outside diameter | 3.85 to 33.15 mm |
| Max. operating pressure | Up to 450 bar (6500 psi) |
| Bend radius | 13 to 410 mm |
| Temperature range | Up to 180°C (with pressure derating above 130°C) |

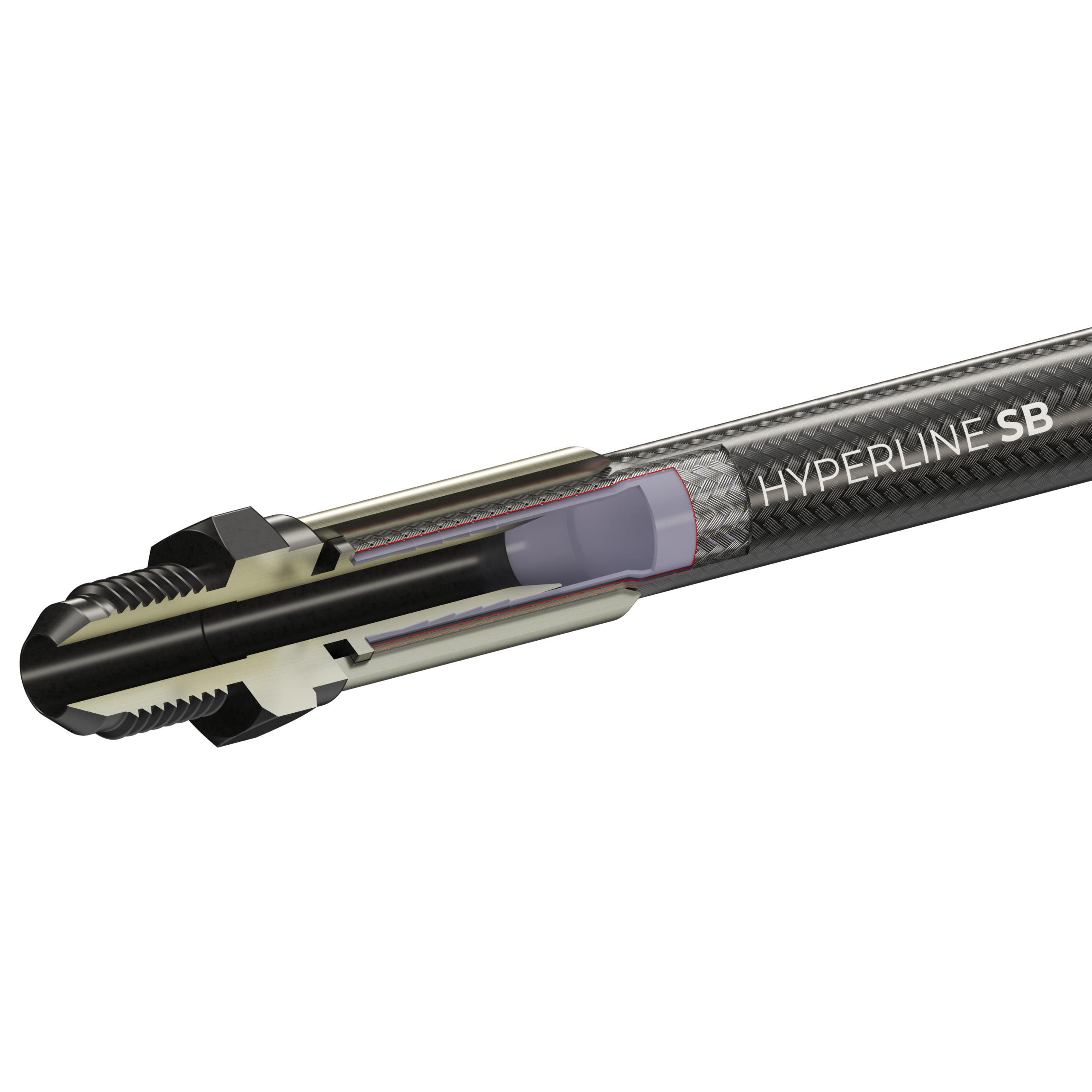

| Construction | SS braid (304 or 316, single or double), aramid braid, or combination braids |
| Liner | Natural or anti-static (ASTM D4895) |
Features
- Smooth internal and external PTFE surfaces
- High pressure capability with exceptionally tight tolerances
- Meets or exceeds SAE 100 R14 standard
- HPG grade available for high pressure gas applications
- Available with natural or anti-static PTFE liner
- Single or double braid options for ultra-high pressure
