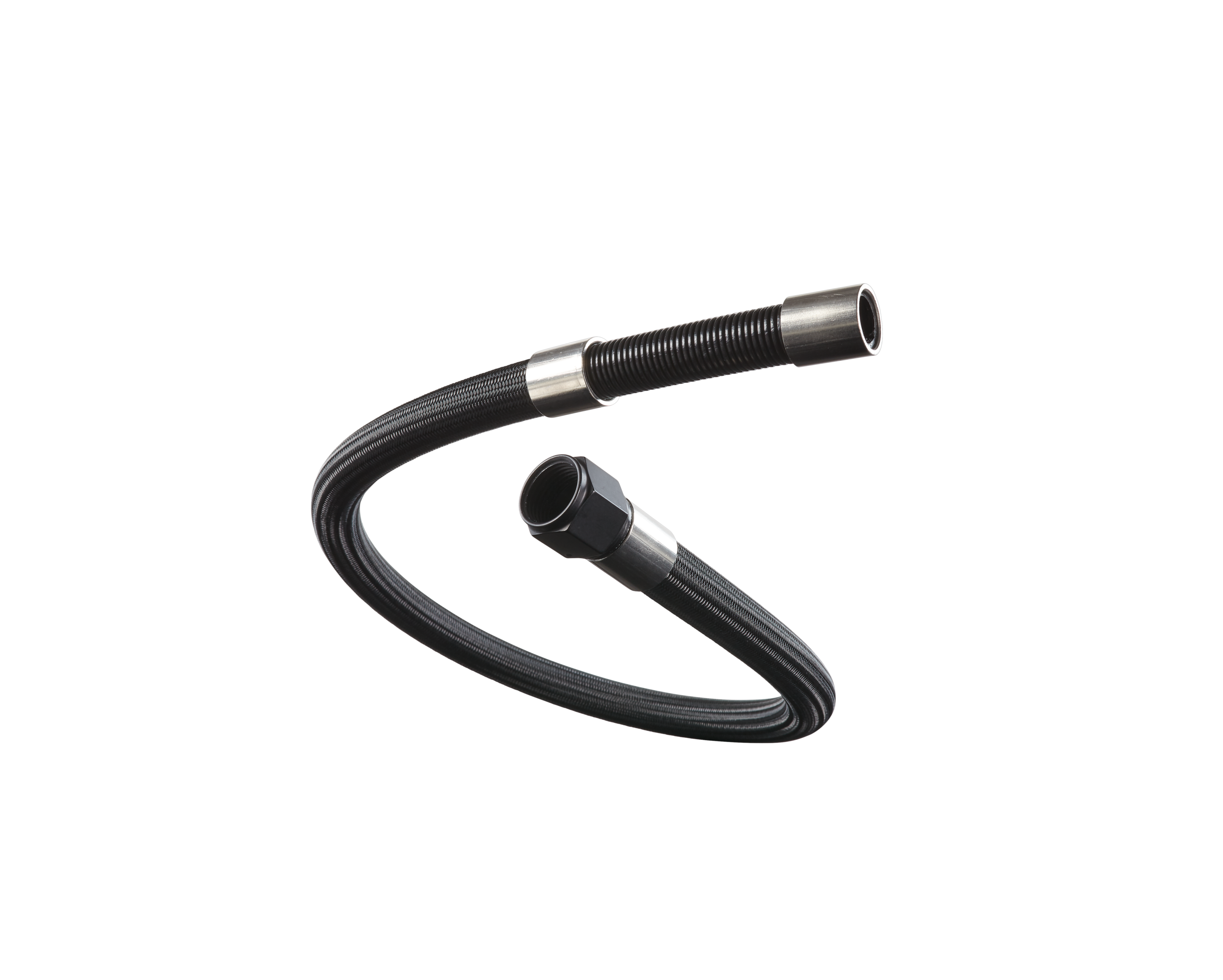

Aflex PTFE-lined hose for automotive and general purpose applications.

Hyperline FX is significantly more flexible than smoothbore hose due to the patented design of the PTFE liner, making it a better fit for applications where flexibility is required. Particularly suited to the tight configurations increasingly common in automotive and aerospace hose applications where space is limited.

The thermally formed liner reduces diffusion rates and provides a non-stick internal surface that resists material build-up. Tested to SAE J1737 for resistance to automotive fuel diffusion.

Category:

Description

Technical Data
SpecificationValue
Nominal bore size6 to 25 mm (1/4″ to 1″)
Outside diameter9 to 31.7 mm
Max. operating pressureUp to 110 bar (1595 psi)
Bend radius19 to 150 mm
Temperature range-150°C to 260°C
Vacuum rating-0.9 bar (SS grades up to 150°C)

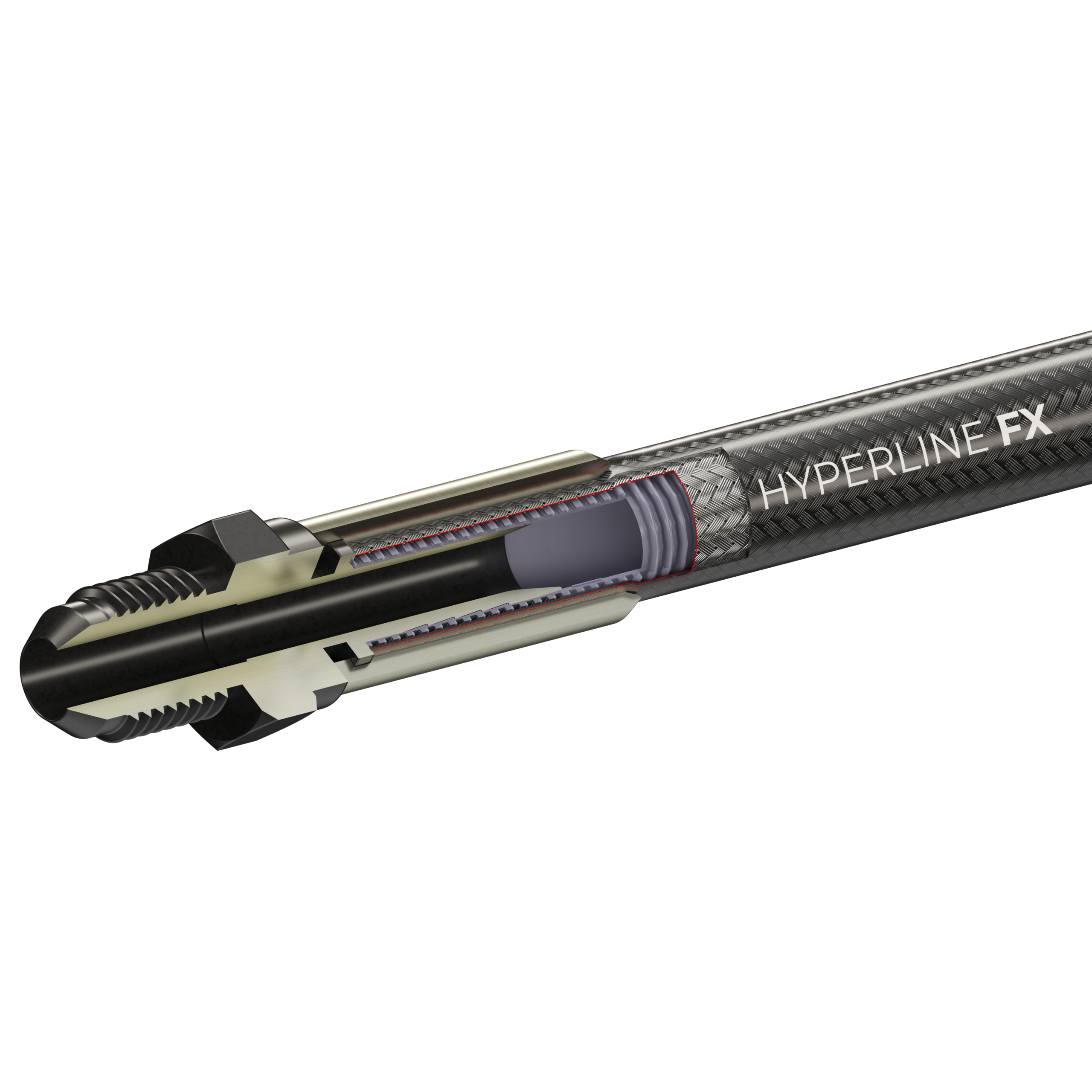

ConstructionTube only, SS braid, aramid braid, or PPS braid
LinerNatural or anti-static (ASTM D4895)

Features
  • Patented liner provides flexibility and kink resistance
  • Excellent chemical resistance
  • Resistant to diffusion of liquids and gases
  • Non-stick internal surface resists material build-up
  • Available with natural or anti-static PTFE liner
