Description

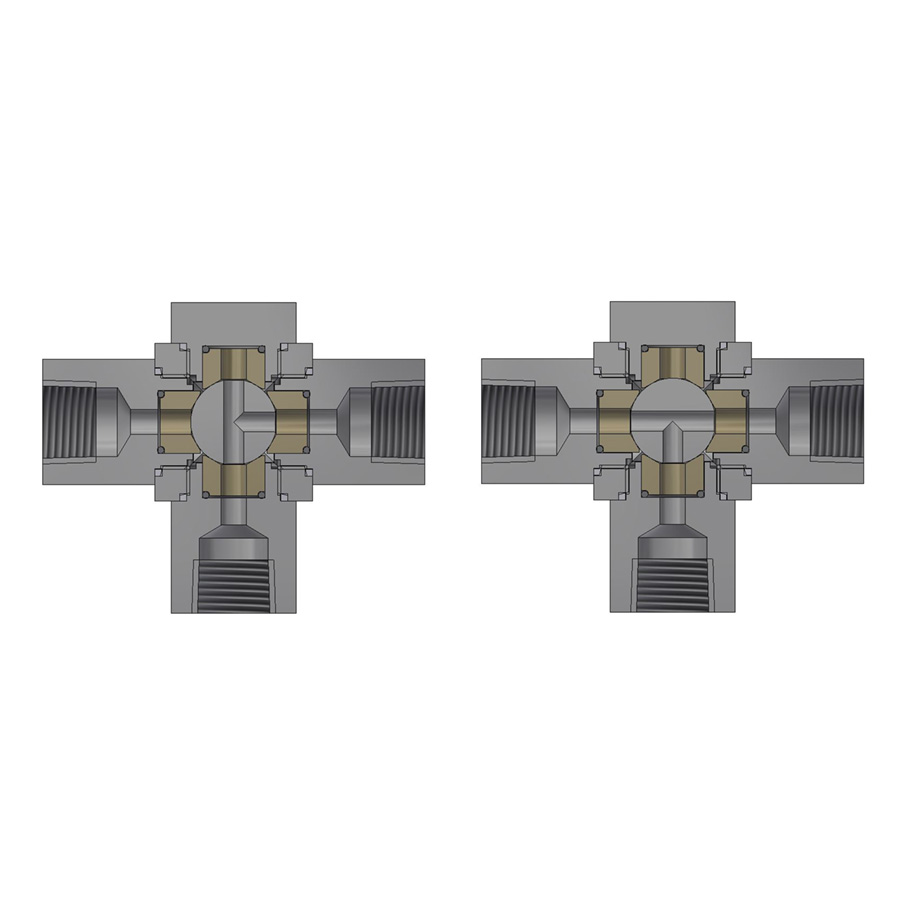

The Alco ‘3T’ Series “T” ported high pressure diverting ball valve range offers a compact and safe way to divert, control, vent, or sample high pressure liquid or gas mediums. Manufactured from high integrity bar-stock material the “3T” is suitable for use in hostile environments. The ‘3T’ is available in several flow configurations (see above) offering more flexibility and usefulness to any system design. 3T1 (configuration 1) is supplied as standard.
Optional Features
- • Vale Types: Diverter.
- • Pressure Rating: 1,000 – 6,000 psi.
- • Temperature Range: -46°C up to 225°C.
- • Bore Size: 5 mm (10 mm design available on request).
- • Connection Size: 1/4″ – 3/4″.
- • Inlets: NPT, BSPP, BSPT, Butt Weld, Socket Weld, Compression Ended (Twin Ferrule).
- • Outlets: NPT, BSPP, BSPT, Butt Weld, Socket Weld, Compression Ended (Twin Ferrule).
- • Handles: T Bar, Lever Option, Lockable.
Material Options
- • Material Construction:
- • Stainless Steel 316.
- • Monel.
- • Duplex.
- • Super Duplex.
- • 6Mo.
- • Titanium.
- • Hastalloy.
- • Zirconium.
- • Inconel.
- • Incoloy.
- • Carbon Steel.
- • Ali Bronze.
- • Other Materials Available upon request.
- • Trim Material: Options available upon request.
- • Bolting Material: Not Applicable.
- • Material Traceability: Yes, as applicable.
Testing & Design Standards
- • Testing Standards: Generally in accordance with API 598.
- • Design Specifications: Manufacturers Standard.
- • Fire Safe Standards: Not Applicable.
- • Relevant Approvals: Not Applicable.
