Description

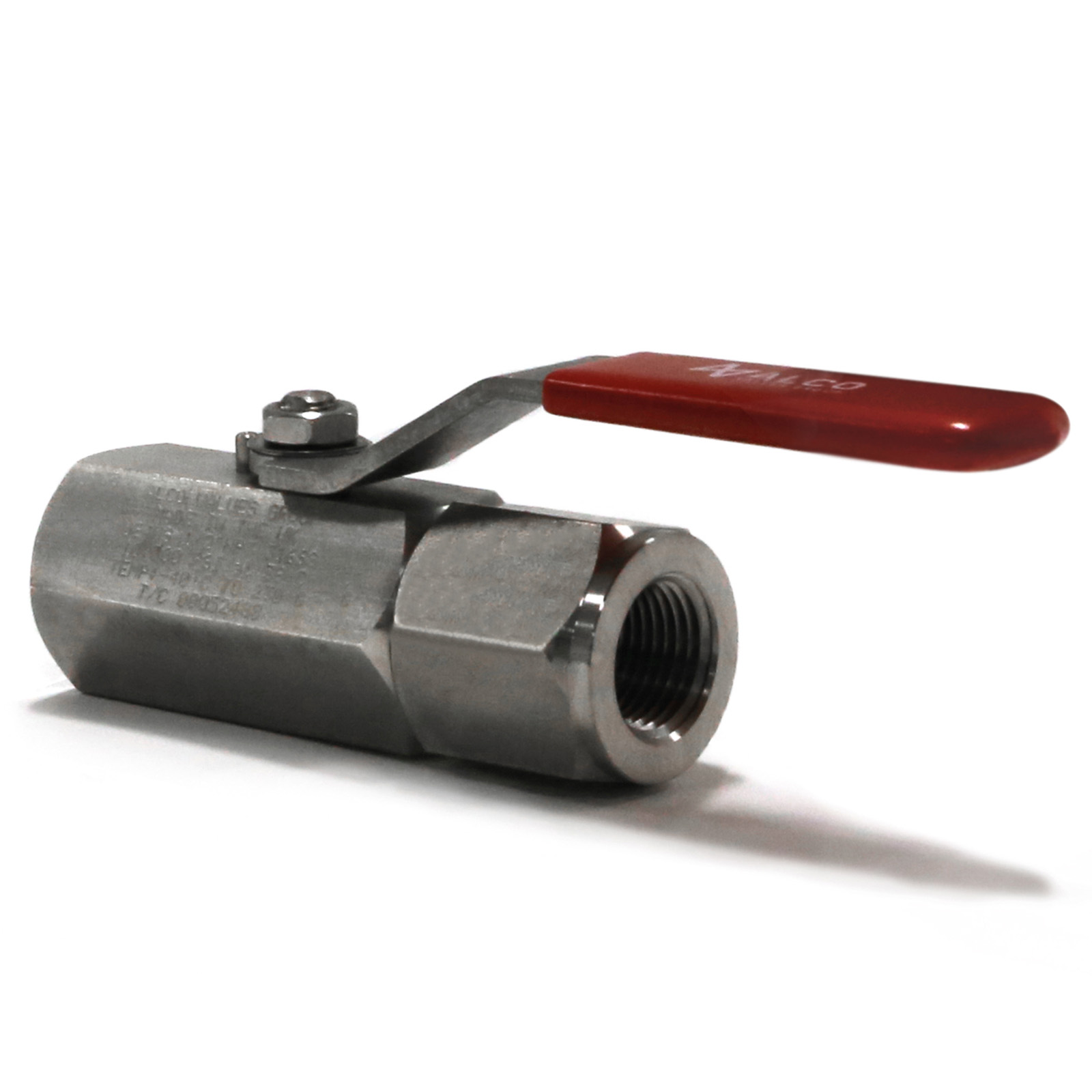

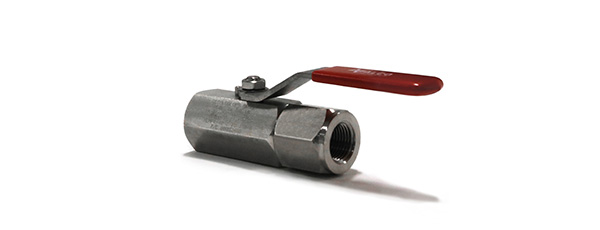

The ‘UE’ Series is a compact hybrid of the ‘A’ and ‘B’ series Ball Valves. It has been designed to be lighter and more compact than the ‘UB’ Series. The UE series is non panel mountable
Optional Features
- • Vale Types: Single Isolate.
- • Pressure Rating: 10,000 psi.
- • Temperature Range: -46°C up to 250°C.
- • Bore Size: 10 mm – 19 mm .
- • Connection Size: 1/4″ – 1″.
- • Inlets: NPT, BSPP, BSPT, Butt Weld, Socket Weld, Compression Ended (Twin Ferrule).
- • Outlets: NPT, BSPP, BSPT, Butt Weld, Socket Weld, Compression Ended (Twin Ferrule).
- • Handles: Point Handle, Lever Option, Lockable.
Material Options
- • Material Construction:
- • Stainless Steel 316.
- • Monel.
- • Duplex.
- • Super Duplex.
- • 6Mo.
- • Titanium.
- • Hastalloy.
- • Zirconium.
- • Inconel.
- • Incoloy.
- • Carbon Steel.
- • Ali Bronze.
- • Other Materials Available upon request.
- • Trim Material: Options available upon request.
- • Bolting Material: Not Applicable.
- • Material Traceability: Yes, as applicable.
Testing & Design Standards
- • Testing Standards: Generally in accordance with API 598.
- • Design Specifications: Manufacturers Standard.
- • Fire Safe Standards: Not Applicable.
- • Relevant Approvals: Not Applicable.
