Description

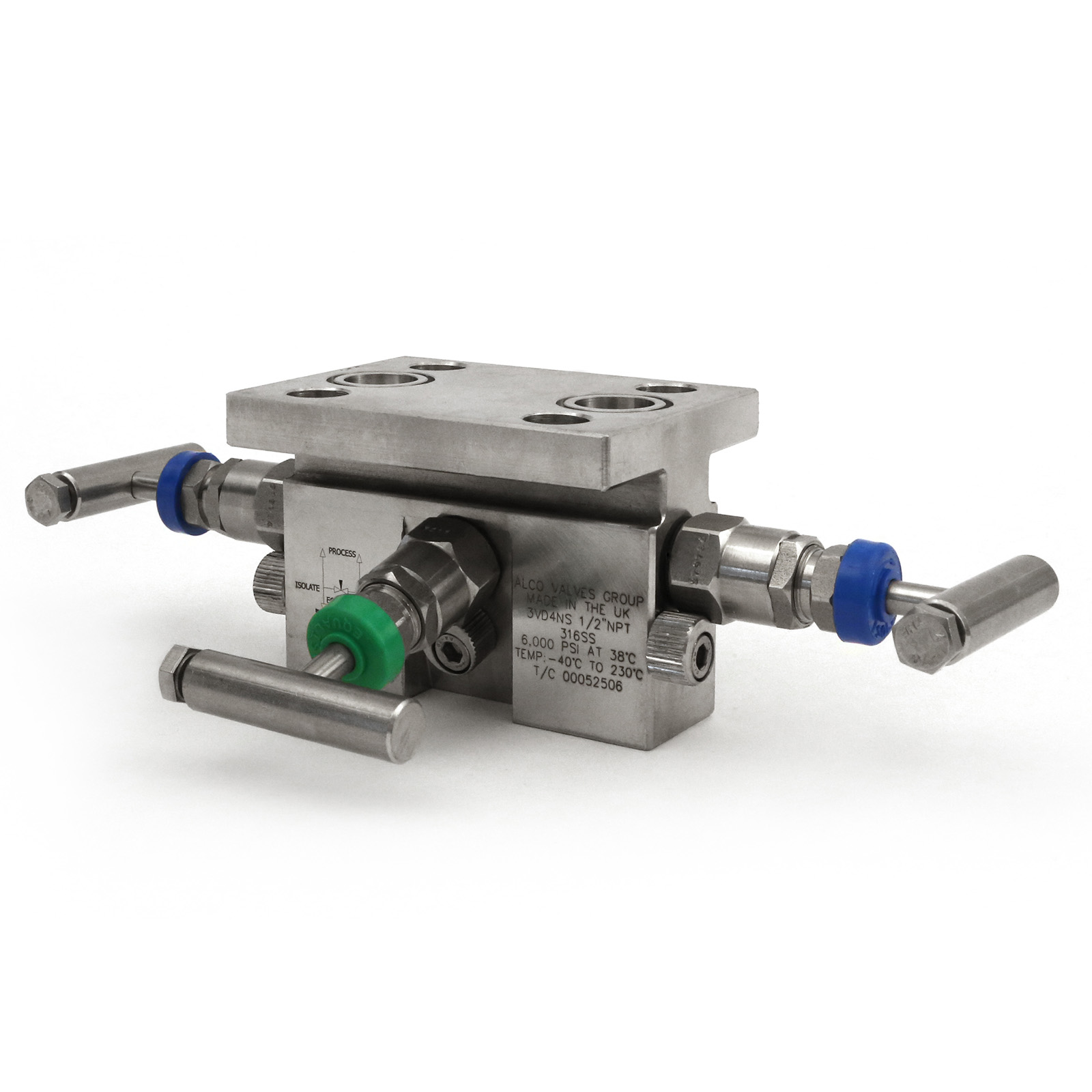

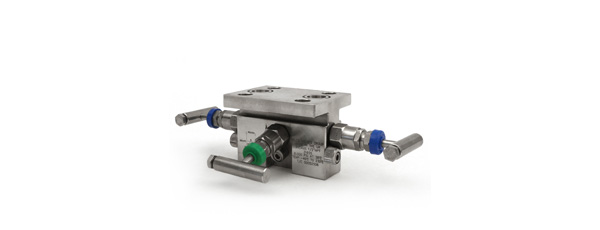

Direct mount 3-valve manifold, instrument mount to pipe connection. Its ‘T’ section body allows reasonable space envelope between the instrument and process lines. The ‘3VD’ Series offers two isolation valves, and one equalising valve.
Optional Features
- • Vale Types: 2x Isolate 1 x equalise.
- • Pressure Rating: 6,000 psi.
- • Temperature Range: -46°C up to 570°C.
- • Bore Size: 3 mm.
- • Connection Size: 1/2″.
- • Inlets: NPT , BSPP, BSPT.
- • Outlets: 54 mm Centers Direct Mount.
- • Handles: T Bar, Handwheel, Lockable.
Material Options
- • Material Construction:
- • Stainless Steel 316.
- • Monel.
- • Duplex.
- • Super Duplex.
- • 6Mo.
- • Titanium.
- • Hastalloy.
- • Zirconium.
- • Inconel.
- • Incoloy.
- • Carbon Steel.
- • Ali Bronze.
- • PTFE/PEEK Packing.
- • Graphite Packing.
- • Other Materials Available upon request.
- • Trim Material: Options available upon request.
- • Bolting Material: 7/16″ UNF Bolting Carbon Steel Standard Stainless Steel Optional.
- • Material Traceability: Yes, as applicable.
Testing & Design Standards
- • Testing Standards: Generally, in accordance with API 598.
- • Design Specifications: Manufacturers Standard.
- • Fire Safe Standards: Optional Firesafe.
- • Relevant Approvals: Not Applicable.
